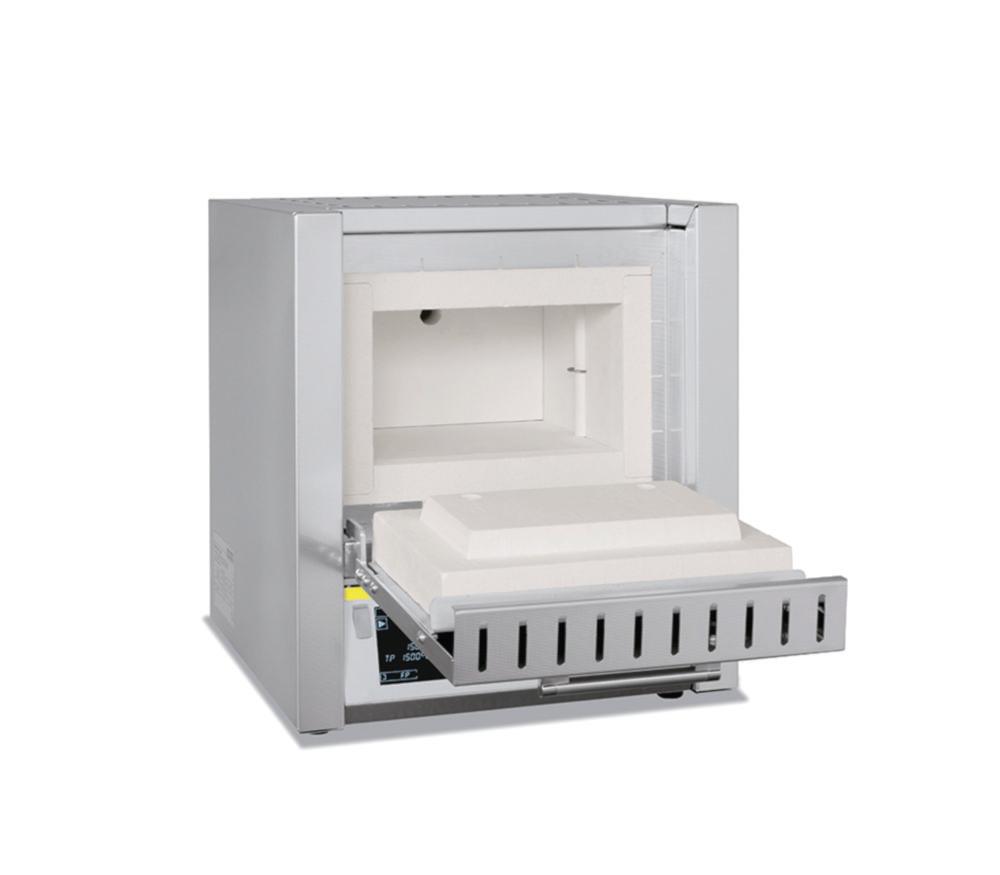

Nabertherm Muffle Furnace L 5/11/C550, Max Temperature 1100°C, Capacity 5 Liters, With Controller
Product overview
The Nabertherm Muffle Furnace L 5/11/C550 is a compact, high-performance furnace designed to deliver precise heat treatment with a maximum temperature of 1100°C. Featuring a 5-liter capacity and equipped with the C550 controller, this furnace is ideal for a wide range of laboratory and industrial applications, including sintering, ashing, and heat treatment. Its efficient energy usage and reliable performance make it a top choice for small-scale processes requiring high temperature control.
Key Features:
- Brand: Nabertherm
- Model: L 5/11/C550
- Max Temperature: 1100°C
- Capacity: 5 Liters
- Controller: Advanced C550 controller for accurate temperature regulation
- Applications: Suitable for laboratories, research, sintering, ashing, and heat treatment processes
The Nabertherm Muffle Furnace L 5/11/C550 is perfect for those needing a reliable, high-temperature furnace with precise control. Its small capacity and high efficiency make it ideal for research and small-scale industrial applications.
Product Specifications
- HS Code #85141980
- Depth int.170 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)385 x 390 x 460 mm
- Ext. depth390 mm
- Ext. height460 mm
- Ext. width385 mm
- Power supply frequency50/60 Hz
- Height int.130 mm
- Int. Dim. (WxDxH)200 x 170 x 130 mm
- Int. width200 mm
- Max. temperature1100 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity5 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity2400 W
- TypeL 5/11/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight30 kg
Downloads
- Nabertherm Laboratory Muffle Furnaces Operating InstructionsDownload
