Nabertherm Muffle Furnace L 24/11/C550 with Controller (400 Volt)
Product overview

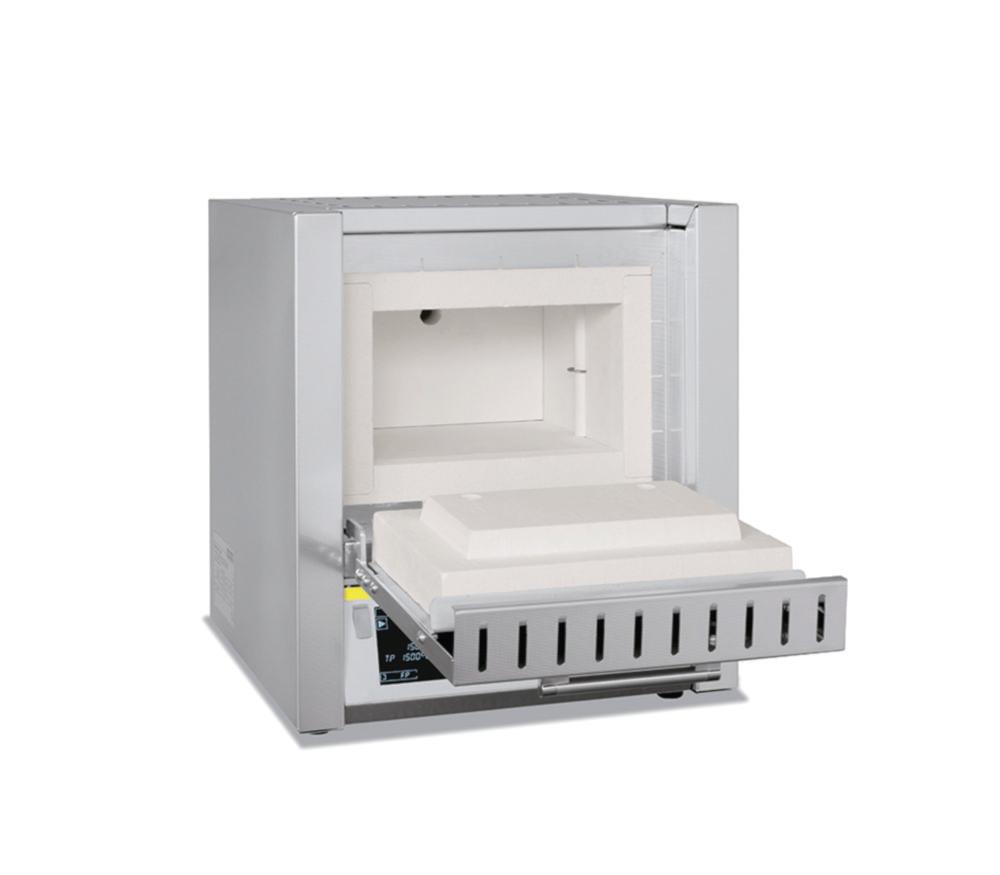

The Nabertherm Muffle Furnace L 24/11/C550 with Controller (400 Volt) is a reliable and efficient furnace designed for high-temperature applications in laboratories and industrial environments. With a maximum temperature of 1100°C, it is equipped with the advanced C550 controller, ensuring precise temperature regulation for tasks like sintering, ashing, and thermal treatments. The 400-volt power supply guarantees quick and consistent heating, making it ideal for demanding processes that require high precision.
Key Features:
- Brand: Nabertherm
- Model: L 24/11/C550
- Max Temperature: 1100°C
- Controller: C550 for precise temperature control
- Power Supply: 400 Volt
- Applications: Suitable for sintering, ashing, and laboratory heating applications
The Nabertherm Muffle Furnace L 24/11/C550 is engineered for performance and reliability. Its 400-volt power supply and advanced controller provide accurate temperature management, making it an excellent choice for various thermal processes in research and industrial settings.
Product Specifications
- HS Code #85141980
- Depth int.340 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)490 x 555 x 580 mm
- Ext. depth555 mm
- Ext. height580 mm
- Ext. width490 mm
- Power supply frequency50/60 Hz
- Height int.250 mm
- Int. Dim. (WxDxH)280 x 340 x 250 mm
- Int. width280 mm
- Max. temperature1100 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity24 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity4500 W
- TypeL 24/11/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
Downloads
- Nabertherm Laboratory Muffle Furnaces Operating InstructionsDownload
