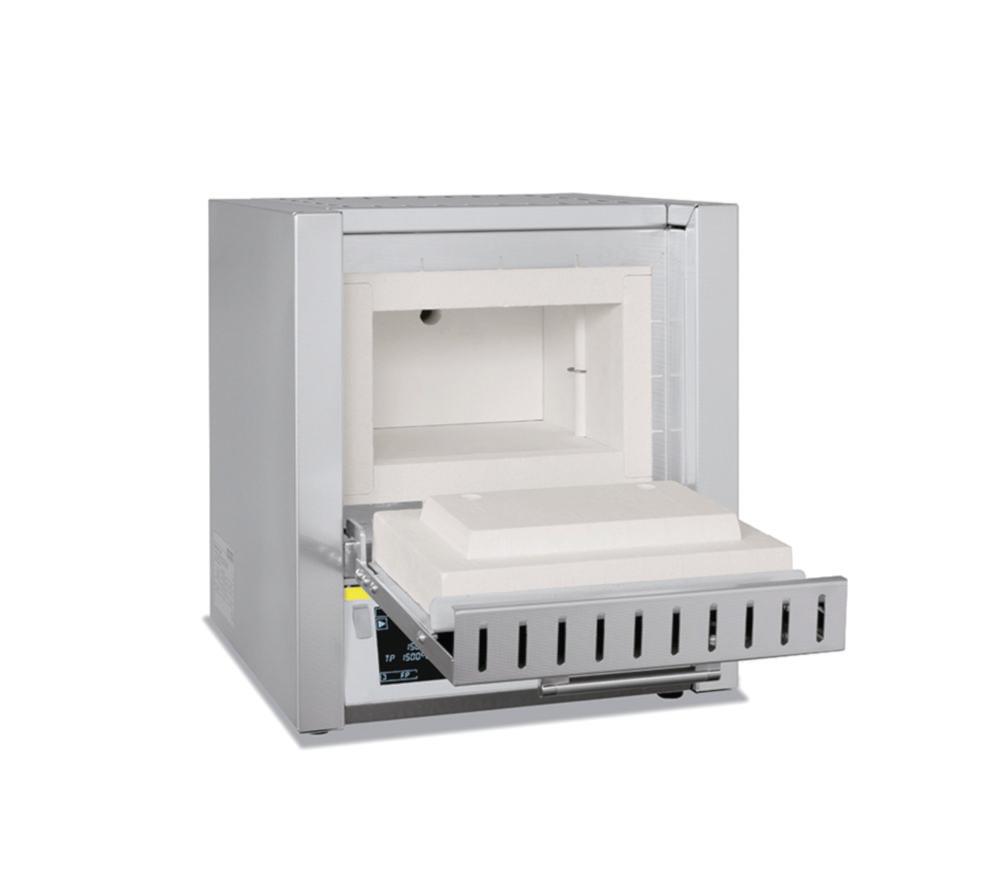

Nabertherm Muffle Furnace L 40/11/C550 with Controller (400 Volt)
Product overview
The Nabertherm Muffle Furnace L 40/11/C550 is a high-performance furnace designed to meet the demands of professional laboratories and industrial applications. With a maximum temperature of 1100°C, this muffle furnace is equipped with a C550 controller, offering precise temperature control for a variety of heat treatments such as ashing, sintering, and materials testing. The 400-volt power supply ensures efficient and reliable heating for consistent results in demanding processes.
Key Features:
- Brand: Nabertherm
- Model: L 40/11/C550
- Max Temperature: 1100°C
- Controller: C550 for accurate temperature regulation
- Power Supply: 400 Volt
- Applications: Ideal for sintering, ashing, and laboratory heating applications
This versatile Nabertherm Muffle Furnace L 40/11/C550 is designed to deliver reliable performance in high-demand environments. The 400-volt power supply ensures optimal heating, while the advanced C550 controller offers precise temperature management for improved efficiency and accuracy in thermal processing.
Product Specifications
- HS Code #85141980
- Depth int.490 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)530 x 705 x 580 mm
- Ext. depth705 mm
- Ext. height580 mm
- Ext. width530 mm
- Power supply frequency50/60 Hz
- Height int.250 mm
- Int. Dim. (WxDxH)320 x 490 x 250 mm
- Int. width320 mm
- Max. temperature1100 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity40 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity6000 W
- TypeL 40/11/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight65 kg
Downloads
- Nabertherm Laboratory Muffle Furnaces Operating InstructionsDownload
