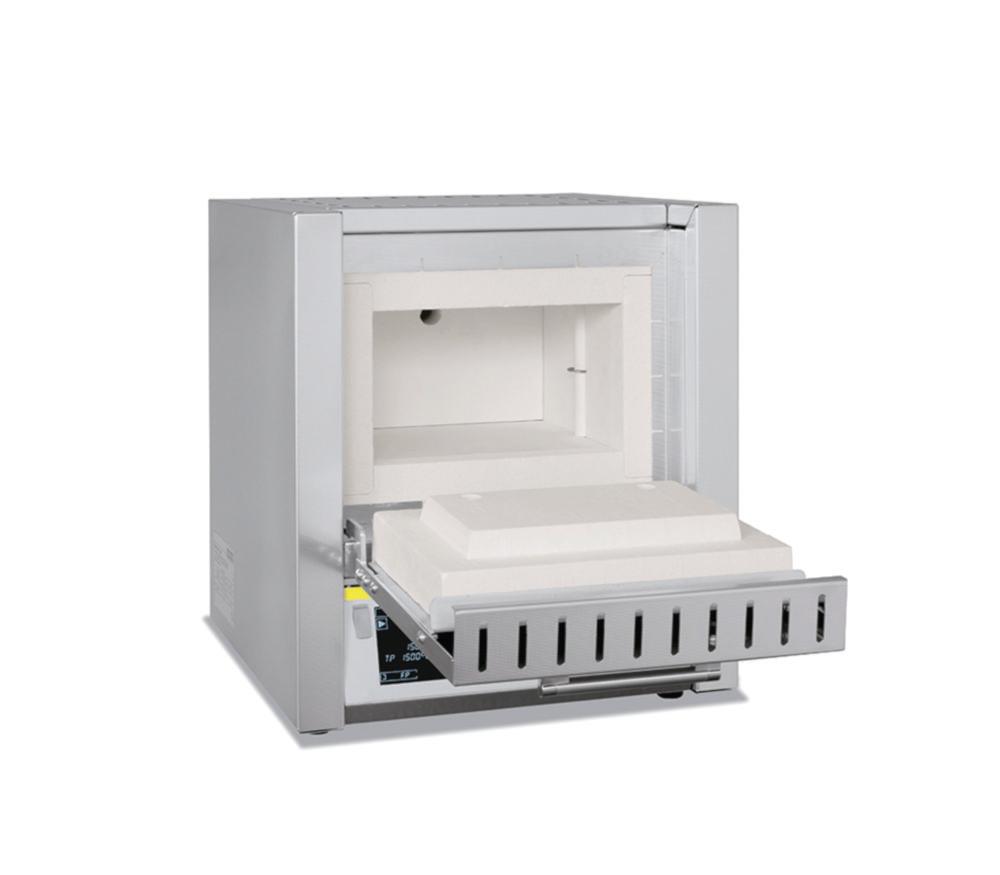

Nabertherm Muffle Furnace L 24/11/B510 (400 Volt)
Product overview
The Nabertherm Muffle Furnace L 24/11/B510 (400 Volt) is designed for high-performance thermal processing applications. With a maximum temperature of 1100°C, it is ideal for material testing, sintering, heat treatment, and other high-temperature processes. Equipped with the B-510 controller, this furnace ensures precise temperature regulation and durability, making it a reliable choice for laboratories and industries requiring consistent results.
Key Features:
- Brand: Nabertherm
- Model: Muffle Furnace L 24/11/B510
- Max Temperature: 1100°C
- Controller: B-510, providing accurate and reliable temperature control
- Voltage: 400 Volt for robust performance in high-demand environments
- Applications: Suitable for material testing, sintering, heat treatment, and other high-temperature processes
- Chamber Volume: Efficiently designed for a variety of heating and testing requirements
- Durability: Built to last with high-quality materials ensuring long-term use
The Nabertherm Muffle Furnace L 24/11/B510 (400 Volt) combines high temperature stability, durable construction, and precise control, making it an excellent choice for demanding laboratory and industrial applications requiring up to 1100°C processing.
Product Specifications
- HS Code #85141980
- Depth int.340 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)490 x 555 x 580 mm
- Ext. depth555 mm
- Ext. height580 mm
- Ext. width490 mm
- Power supply frequency50/60 Hz
- Height int.250 mm
- Int. Dim. (WxDxH)280 x 340 x 250 mm
- Int. width280 mm
- Max. temperature1100 °C
- Max. voltage400 V·3/N/PE
- Nominal capacity24 l
- Plug typeCEE
- Power supply400 V·3/N/PE, 50/60 Hz
- Rated capacity4500 W
- TypeL 24/11/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
Downloads
- Nabertherm Laboratory Muffle Furnaces Operating InstructionsDownload
