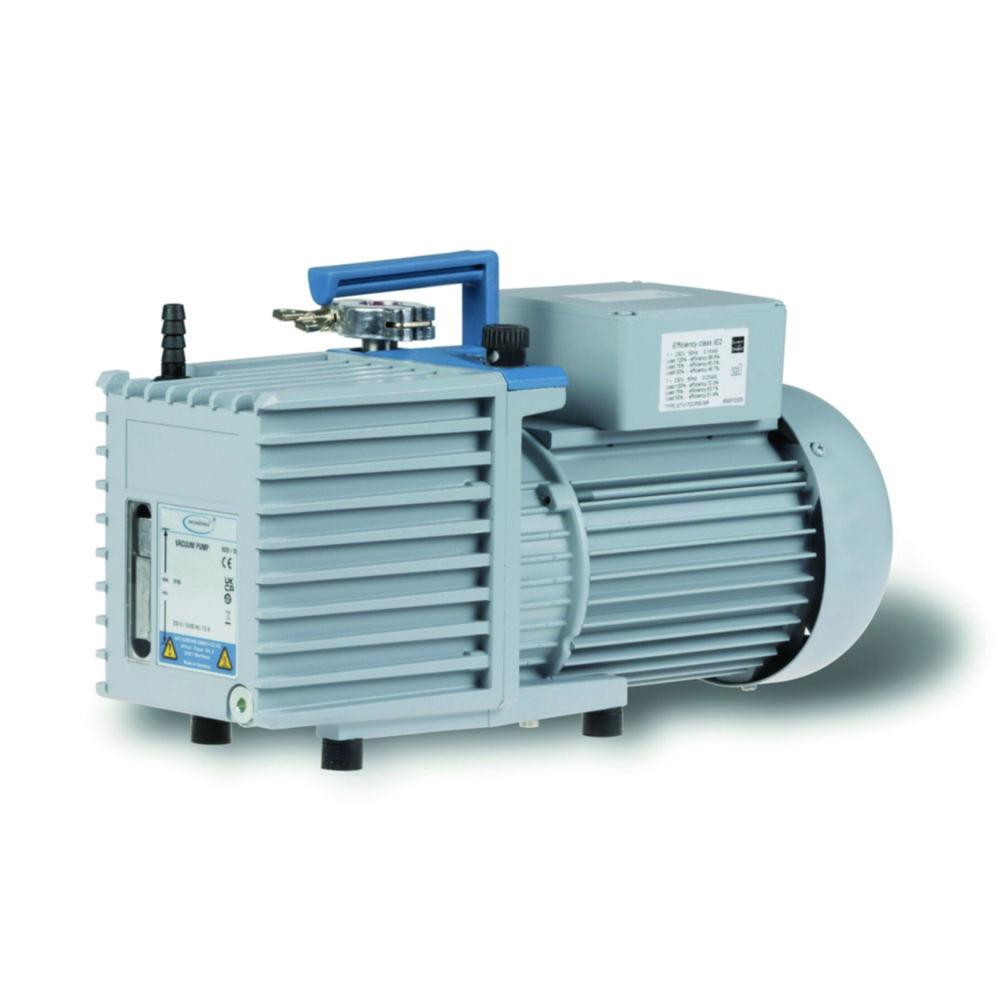

Vacuubrand Rotary Vane Pump RZ 6, Two-Stage, 230 V / 50-60 Hz, CH Mains Cable
Product overview
The Vacuubrand Rotary Vane Pump RZ 6 is a two-stage vacuum pump designed to provide high performance and efficiency in laboratory and industrial vacuum applications. With a 230 V / 50-60 Hz power input and a CH mains cable, this pump is perfect for environments requiring consistent and reliable vacuum solutions. The RZ 6 offers superior pumping speeds and is designed for long-lasting, energy-efficient operation, making it an essential tool for demanding applications.
Key Features:
- Brand: Vacuubrand
- Model: Rotary Vane Pump RZ 6
- Type: Two-stage vacuum pump for high performance
- Voltage: 230 V / 50-60 Hz
- Power Cable: CH mains cable for Swiss power systems
- Application: Ideal for laboratory and industrial vacuum applications that require high pumping speed and efficiency
- Packaging: Complete unit, ready for installation
Scope of Supply:
- Rotary vane pump
- manual
The Vacuubrand RZ 6 Rotary Vane Pump is engineered for demanding applications where reliable, high-performance vacuum generation is required, making it an excellent choice for both laboratory and industrial settings.
Product Specifications
- HS Code #84141025
- Connection pressure sideDN 8-10 mm
- Connection suction sideKF DN 16
- Depth420 mm
- Dimensions (WxDxH)156 x 420 x 240 mm
- Flow rate95 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level50 db(A)
- Plug typeCH
- Power supply230 V, 50/60 Hz
- Rated capacity180 W
- TypeRZ 6
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight17 kg
- Width156 mm
