Representative image only

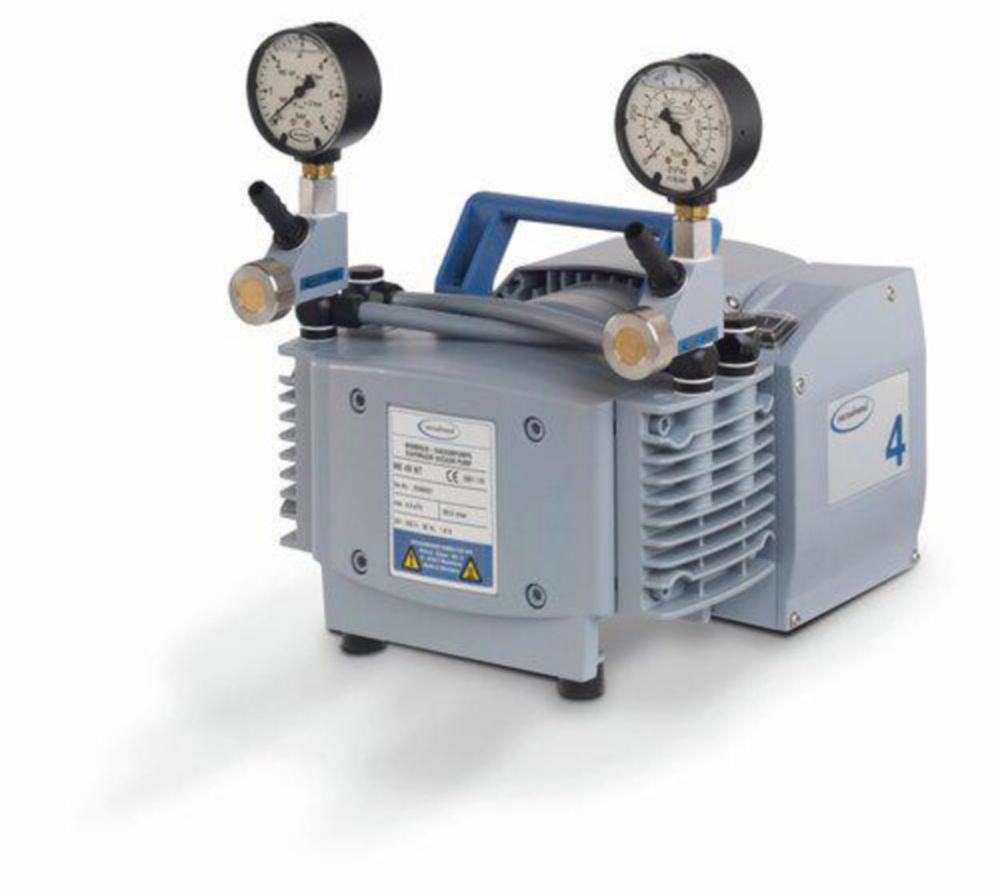

Vacuubrand Diaphragm Pump ME 4R NT, One-Stage, 230 V, 50 Hz with CEE Plug
Sold by: Venktron DMCC
Available Soon
Part #: 9.880 884Manufacturer #: 20731100
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
The Vacuubrand Diaphragm Pump ME 4R NT is a high-performance one-stage diaphragm pump designed for laboratory applications requiring continuous, oil-free pumping and evacuation of non-corrosive gases. Operating at 230 V and 50 Hz, this pump delivers a maximum pumping speed of 4 m³/h and an ultimate vacuum of 100 mbar. It is equipped with a CEE plug, making it suitable for European power systems.
Key Features:
- Brand: Vacuubrand
- Type: Diaphragm pump
- Design: One-stage operation for efficient vacuum generation
- Voltage: 230 V, 50 Hz
- Cable Type: CEE plug for compatibility with European systems
- Maximum Pumping Speed: 4 m³/h
- Ultimate Vacuum: 100 mbar
- Noise Level: 45 dBA
- Dimensions: 254 x 268 x 290 mm
- Weight: 11.5 kg
- Applications: Vacuum ovens, pressure and vacuum filtrations, generation of compressed, absolutely oil-free air
This diaphragm pump is an excellent choice for laboratories requiring a reliable and efficient solution for non-corrosive gas applications.
Product Specifications
- HS Code #84141089
- Connection pressure sideDN 8-10 mm
- Connection suction sideDN 8-10 mm
- Depth254 mm
- Dimensions (WxDxH)268 x 254 x 290 mm
- Flow rate3.8 m³/h
- Height290 mm
- No. of stages1
- Plug typeCEE
- TypeME 4R NT
- Type of auxiliary energyMains connection
- Ultimate vacuum100 mbar
- UNSPSC40-15-15-48
- Width268 mm
