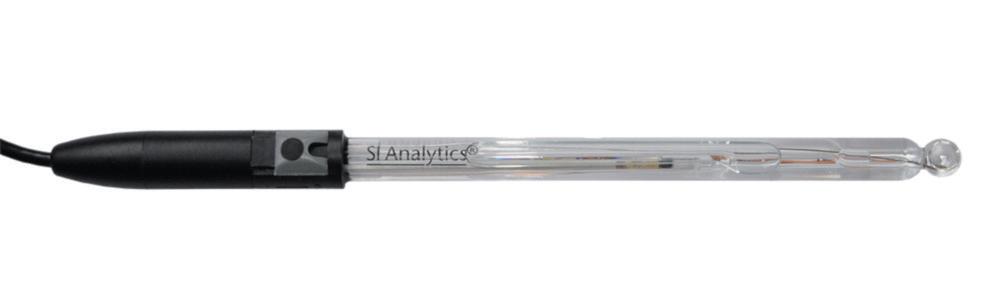

Representative image only
Xylem SI ScienceLine Plus pH Combination Electrode SCP 93 – 0…14 pH, -5…+100°C, 170 mm Length, 12 mm Diameter, 3 m Cable with DIN and Banana Plug
Sold by: Venktron DMCC
Available Soon
Part #: 4.672 222Manufacturer #: 285101325
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
The Xylem SI ScienceLine Plus pH Combination Electrode SCP 93 is engineered for precise and reliable pH measurements in laboratory settings. With a robust glass shaft and platinum diaphragm, it ensures accurate readings across a wide pH range of 0 to 14 and temperature range of -5°C to +100°C. The 3-meter cable with DIN and banana plug connections offers versatile compatibility with various laboratory instruments.
Key Features:
- Brand: Xylem SI
- Model: SCP 93
- Length: 170 mm
- Diameter: 12 mm
- Connection: 3 m fixed cable with DIN and banana plug
- Material: Glass shaft
- Diaphragm: Platinum wire
- Electrolyte: KCl 3 mol/l
- Temperature Range: -5°C to +100°C
- pH Range: 0 to 14
- Temperature Sensor: Pt 1000
- Membrane Shape: Sphere
This electrode is ideal for high-precision pH measurements in various laboratory applications, ensuring durability and consistent performance.
Product Specifications
- HS Code #90279000
- Cable length3 m
- Connection plugDIN + banana
- DiaphragmPlatinum
- ElectrolyteKCl 3 mol/l
- Shaft length170 mm
- Material shaftGlass
- Max. pH value14
- Max. temperature100 °C
- Min. pH value0
- Min. temperature-5 °C
- pH range0 ... 14
- Shaft Ø12 mm
- Shape membraneSphere
- Temperature-5 ... 100 °C
- Temperature sensorPt 1000
- TypeSCPpHT-H170MF-3M-DIN-N
- UNSPSC41115604
Variant products
Products related to this item (4)
product | Mfr # | Part # | Product name | Type | Max. temperature | Price | Availability | |
285101305 | 4.672 221 | Xylem SI ScienceLine Plus pH Combination Electrode – 0…14 pH, -5…+100°C, 170 mm Length, 12 mm Diameter, Plug Head, Glass Shaft, Platinum Junction
| SCPpH-H170MF | 100 °C | 1٬650٫70 | |||
285101300 | 4.672 220 | Xylem SI ScienceLine Plus pH Combination Electrode SCP 70 – 0…14 pH, -5…+100°C, 120 mm Length, 12 mm Diameter, Plug Head, Glass Shaft, Platinum Junction
| SCPpH-A120MF | 100 °C | 1٬583٫84 | |||
285101315 | 4.672 218 | Xylem SI ScienceLine Plus pH Combination Electrode – 0…14 pH, -5…+100°C, 170 mm Length, 12 mm Diameter, 3 m Cable with BNC and Banana Plug
| SCPpHT-A170MF-3M-BNC-N | 100 °C | 2٬373٫67 | |||
285101320 | 4.672 219 | Xylem SI ScienceLine Plus pH Combination Electrode SCP 93 ID Plus – 0…14 pH, -5…+100°C, 170 mm Length, 12 mm Diameter, 3 m Cable with DIN and Banana Plug
| SCPpHT-A170MF-3M-DIN-N | 100 °C | 2٬453٫07 |
