Precision hotplates,upto +99,9°C,200x280 mm

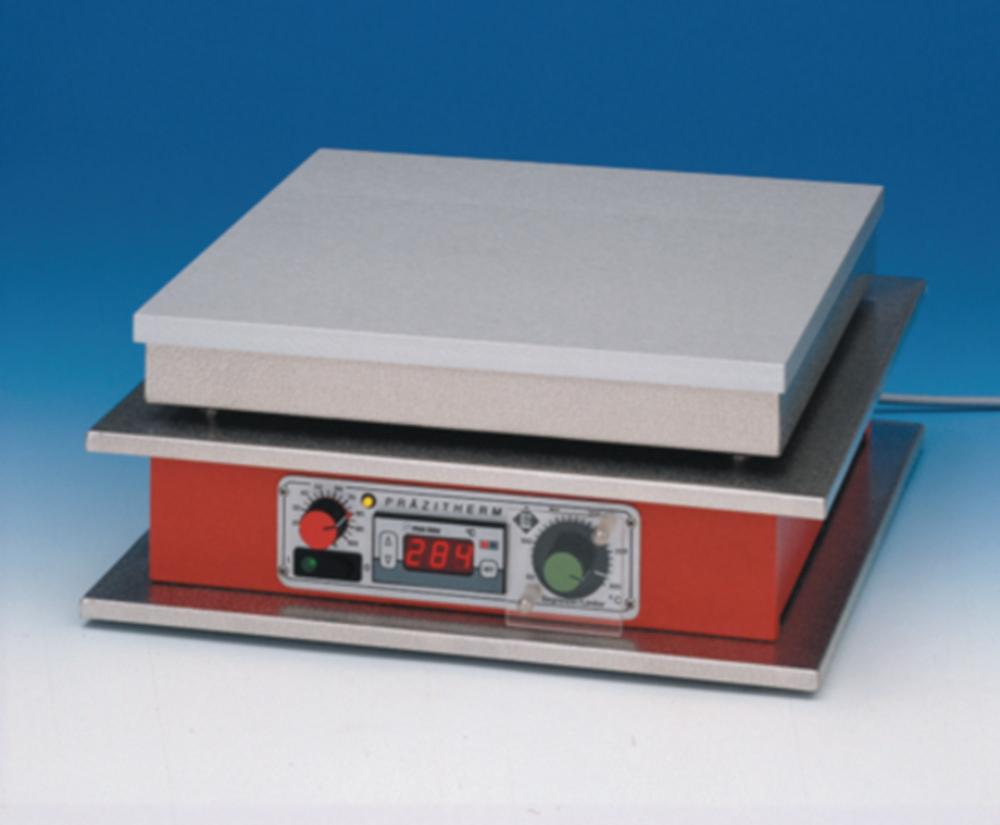

Representative image only

Precision hotplates,upto +99,9°C,200x280 mm

Sold by: Venktron DMCC
Available Soon
Part #: 9.645 827Manufacturer #: PZ 28-1
Estimated shipping time:Contact us via live chat or via contact us page

AED 9٬741٫25

Price includes VAT
See the available (3) variant products
Product overview
For continuous operation. Provide extremely accurate, uniform temperatures, even in plate corners and on edges. Polished anodised aluminium heating surface. Microprocessor-controlled temperature controller with temperature setting up to 99.9 in 0.1 °C steps, over 99.9 in 1 °C steps. Actual temperature displayed continuously. With separate power controller for performance adjustment to the heating requirements from 10 to 100 %. Built-in relay allows direct connection of electronic contact thermometers.
Product Specifications
  • HS Code #84198998
  • Depth heating area280 mm
  • Depth300 mm
  • Heating area (WxD)200 x 280 mm
  • Dimensions (WxDxH)210 x 300 x 135 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Heating capacity500 W
  • Height135 mm
  • Material hotplateAluminium alloy
  • Max. temperature110 °C
  • Max. voltage230 V
  • Min. temperature30 °C
  • No. of hotplates1
  • Power supply230 V, 50/60 Hz
  • TypePZ 28-1
  • Type of auxiliary energyMains connection
  • UNSPSC41102406
  • Weight7 kg
  • Width heating area200 mm
  • Width210 mm
Downloads
  • Gestigkeit Precision Hotplate PZ Series Brochure-Data SheetDownload
