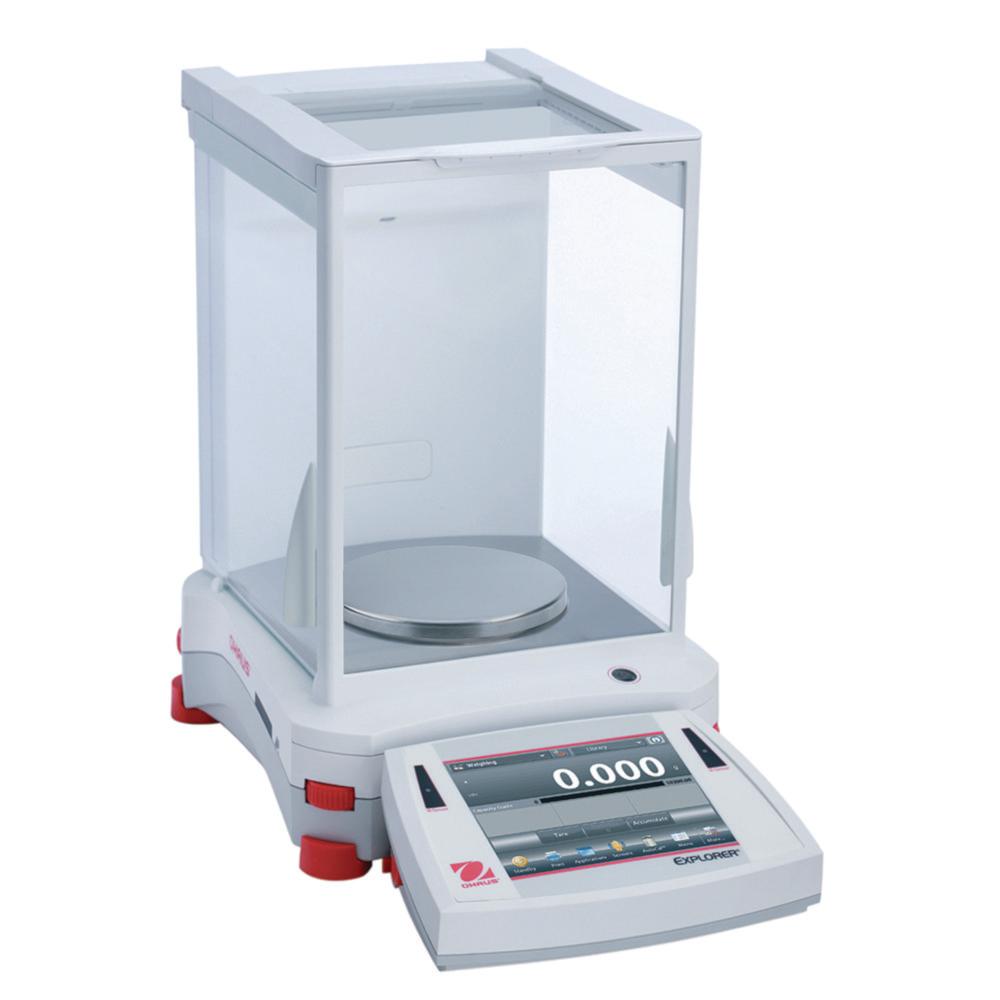

Representative image only
Precision balance Explorer® EX423 420 g / 1 mg, weighing plate Ø 130mm
Sold by: Venktron DMCC
Available Soon
Part #: 9.902 376Manufacturer #: 83021342
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
- High resolution multi-lingual colour VGA touch display with icons for simple operation
- Programmable multi-functional touch-free sensors
- Multiple application modes plus library for storage of personal application settings
- External calibration, High capacity and EC type approved models also available
- Application: Weighing (17 units + custom units), Parts Counting, % weighing, Animal/Dynamic Weighing, Checkweighing, Filling, Totalization, Formulation, Differential weighing, Density determination, Peak hold, Ingredient costing, Pipette adjustment, Gross/Net/Tare Weighing
- Display: High resolution full-color VGA graphic display (5.7" diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad
- Operation: Mains Operation
- Communication: Easy access communication ports including USB host, USB device, RS232 and an optional 4th port for either RS232 or Ethernet
- GLP/GMP Data Output with Real Time Clock. Direct Data Transfer Function
- Construction: Metal base, ABS top housing, stainless steel pan, anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic draftshield doors on selected models
- Design features: Modular display design with adjustable angle (attach to base, wall or optional tower). AutoCal™ fully-automatic internal calibration system. Level assist feature with illuminated level indicator. Selectable environmental and auto-print settings. Integral weigh below hook. Protective in-use cover. Software lock switch
Product Specifications
- HS Code #90160010
- Depth393 mm
- Depth weighing plate130 mm
- Dimensions (WxDxH)230 x 393 x 350 mm
- Height350 mm
- Max. load420 g
- Max. voltage240 V
- Min. voltage100 V
- Plug typeEU
- Power supply100 ... 240 V
- Readability0,001 g
- TypeEX423
- Type of auxiliary energyMains connection
- UNSPSC41111517
- Weighing plate (WxD)Ø 130 mm
- Width230 mm
- With draft shieldYes
