Representative image only

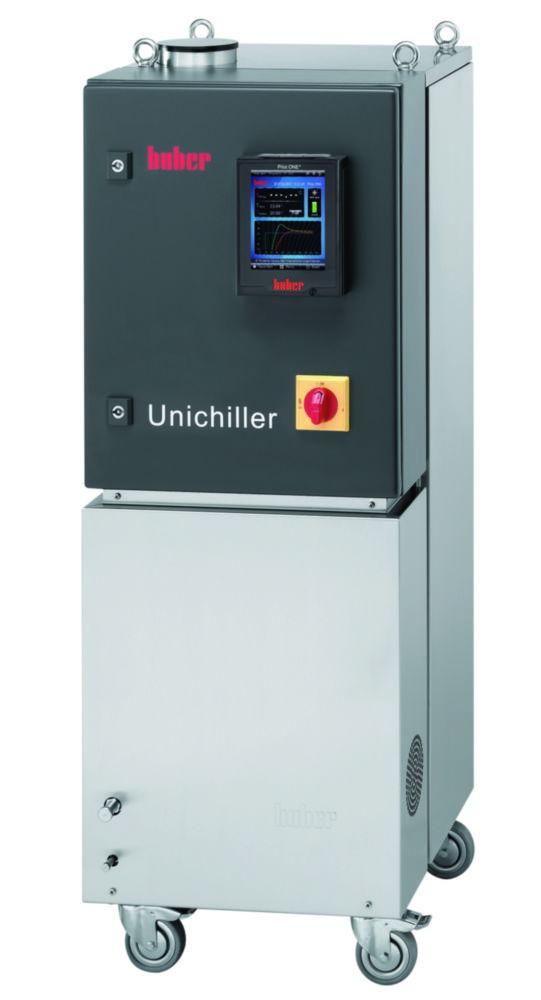

Peter Huber Chiller Unichiller 040Tw temp.-range: -10...40°C, 27 l/min / 3.0 bar, with controller Pilot ONE
Sold by: Venktron DMCC
Available Soon
Part #: 9.859 321Manufacturer #: 3014.0061.01
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
The Peter Huber Chiller Unichiller 040Tw is engineered for high-performance temperature control in demanding laboratory and industrial environments. With a temperature range of -10°C to +40°C, a powerful flow rate of 27 l/min, and a pressure capacity of 3.0 bar, this unit delivers efficient and reliable cooling. The integrated Pilot ONE controller offers advanced programming and intuitive operation for seamless control.
Key Features:
- Brand: Peter Huber
- Temperature Range: -10°C to +40°C
- Flow Rate: 27 l/min
- Pressure: 3.0 bar
- Controller: Pilot ONE for advanced and user-friendly operation
- Application: Ideal for laboratory and industrial temperature control
- Packaging: Supplied individually
This high-efficiency chiller is a reliable solution for precise thermal management in research, testing, and production applications.
Product Specifications
- HS Code #84186900
- Ext. dim. (WxDxH)400 x 440 x 1,230 mm
- Ext. depth440 mm
- Ext. height1230 mm
- Ext. width400 mm
- Power supply frequency50 Hz
- IP codeIP 20
- Max. delivery pressure3 bar
- Max. temperature40 °C
- Max. voltage400 V
- Max. volume bath2.5 l
- Min. temperature-10 °C
- OperationTouchscreen
- Power supply400 V, 50 Hz
- RefrigerantR449A
- Temperature stability0,5 K
- Temperature-10 ... 40 °C
- TypeUnichiller® 040Tw
- Type of auxiliary energyMains connection
- Volume bath2.5 l
Variant products
Products related to this item (4)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
3024.0053.01 | 9.859 318 | Peter Huber Chiller Unichiller 020Tw temp.-range: -20...40°C, 27 l/min / 3.0 bar, with controller Pilot ONE | Unichiller® 020Tw | Mains connection | 105٬093٫49 | |||
3025.0056.01 | 9.859 320 | Peter Huber Heating Bath Circulator CC-308B temp.-range: (-20)28...300°C, 2.0 kW, with Controller Pilot ONE | Unichiller® 030Tw | Mains connection | 109٬364٫43 | |||
3054.0016.01 | 4.687 694 | Peter Huber Chiller Unichiller 025Tw Temp.-Range: -10...40°C, with Controller Pilot ONE | Unichiller® 025Tw | Mains connection | 107٬086٫88 | |||
3013.0075.01 | 4.687 693 | Peter Huber Chiller Unichiller 017Tw temp.-range: -10...40°C, with controller Pilot ONE | Unichiller® 017Tw | Mains connection | 102٬243٫41 |
