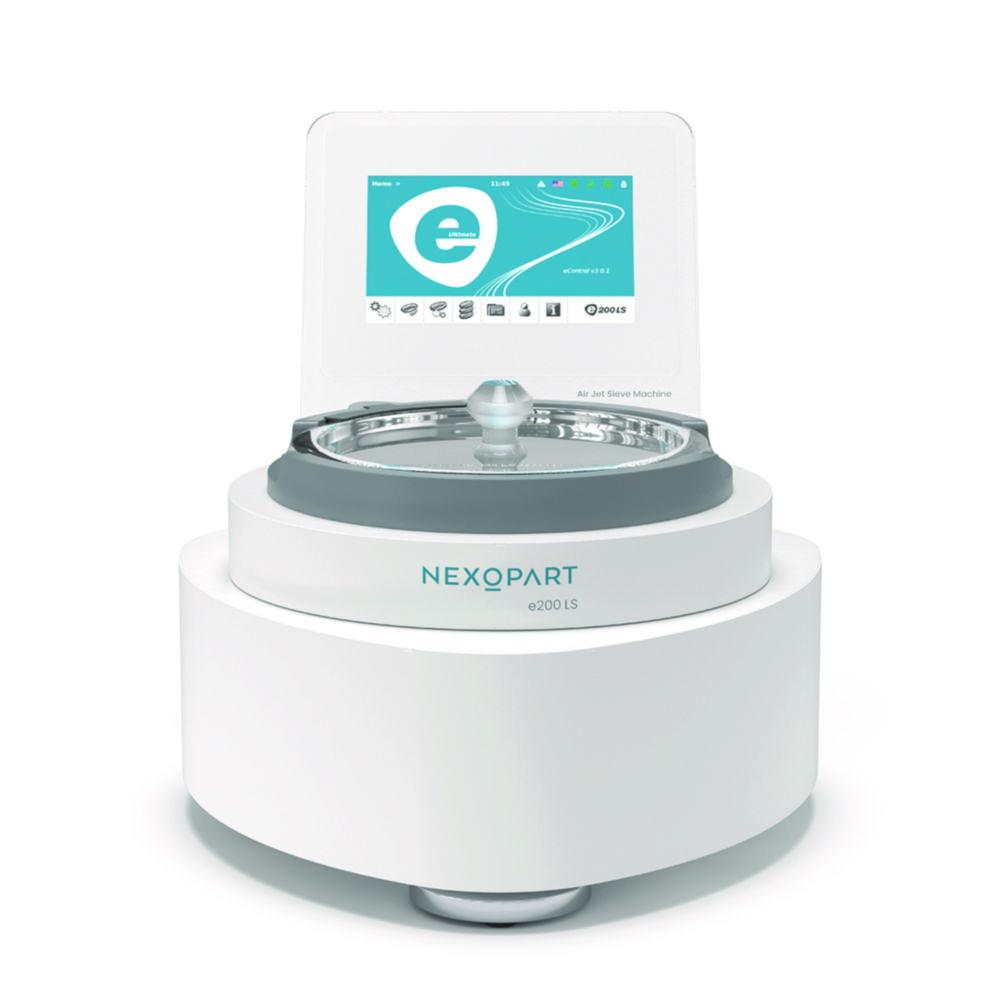

NEXOPART Air Jet Sieve Machine e200 LS eControl Ultimate with HMI 3.0 Screen 90–264V 50/60Hz 1500–5000 Pa

The NEXOPART Air Jet Sieve Machine e200 LS eControl Ultimate is a high-performance solution for precise particle size analysis. Featuring an advanced HMI 3.0 touch screen interface, it provides intuitive operation and customizable settings. Operating on 90–264V at 50/60Hz with a negative pressure range of 1500–5000 Pa, this machine delivers accurate and efficient dry sieving results, making it ideal for laboratory quality control and research applications.

Key Features:

• Brand: NEXOPART
• Model: e200 LS eControl Ultimate
• HMI 3.0 touch screen for advanced control
• Voltage: 90–264V; 50/60Hz
• Negative pressure range: 1500–5000 Pa
• Automatic sieve detection (RFID)
• Automatic underpressure control
• Fast, simple evaluation of results in tabular form
• Balance communication via RS-232 interface
• Central parameter management of all sieves
• Automatic saving and printing
• Sieve set management (SOP)
• Automatic backup
• Requirements for software validation: ISPE GAMP 5, FDA 21 Part 11, compliant with EC GMP Annex 11
• Ideal for precise dry particle size analysis in laboratory settings

Scope of Supply:

• Air jet sieve machine
• Software version ULTIMATE
• Sieve adapter
• Slotted nozzle
• Acrylic glass lid
• Suction silencer
• Hammer and brush
• Connection piece
• Power connection cable
• Operating manual

Note: Please order vacuum cleaner separately.

The NEXOPART e200 LS eControl Ultimate Air Jet Sieve Machine combines precision, reliability, and advanced usability—making it an essential tool for laboratories requiring accurate and efficient particle size analysis.
