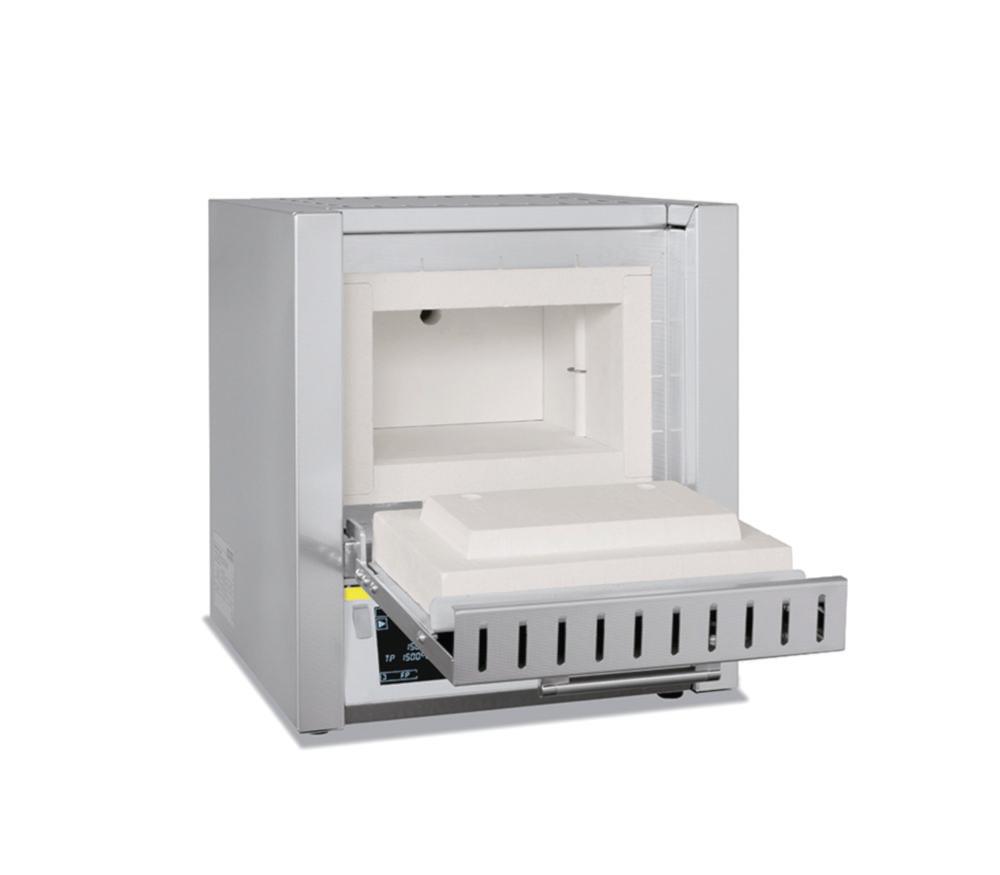

Nabertherm Muffle Furnace L 9/14/B510, Max Heat Power 1400°C with Fiber Insulation and Flap Door
Product overview
The Nabertherm Muffle Furnace L 9/14/B510 offers exceptional performance with a maximum temperature of 1400°C. Designed with high-quality fiber insulation, this furnace ensures efficient energy usage while maintaining precise heat distribution. It features a flap door for easy loading and unloading of materials, making it ideal for laboratory and industrial applications such as ashing, sintering, and heat treatment. The robust design and advanced technology make this furnace a reliable choice for high-temperature processes.
Key Features:
- Brand: Nabertherm
- Model: L 9/14/B510
- Max Temperature: 1400°C, capable of handling demanding thermal processes
- Insulation: Fiber insulation for high energy efficiency and quick heat-up times
- Flap Door: Provides easy access to the furnace chamber, ensuring convenience and safety during use
- Applications: Perfect for ashing, sintering, and heat treatment processes in both laboratory and industrial environments
The Nabertherm L 9/14/B510 Muffle Furnace combines reliability, precision, and energy efficiency, making it an ideal solution for various high-temperature applications.
Product Specifications
- HS Code #85141980
- Depth int.250 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)530 x 525 x 630 mm
- Ext. depth525 mm
- Ext. height630 mm
- Ext. width530 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)250 x 250 x 170 mm
- Int. width250 mm
- Max. temperature1400 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity9 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3200 W
- TypeL 9/14/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
