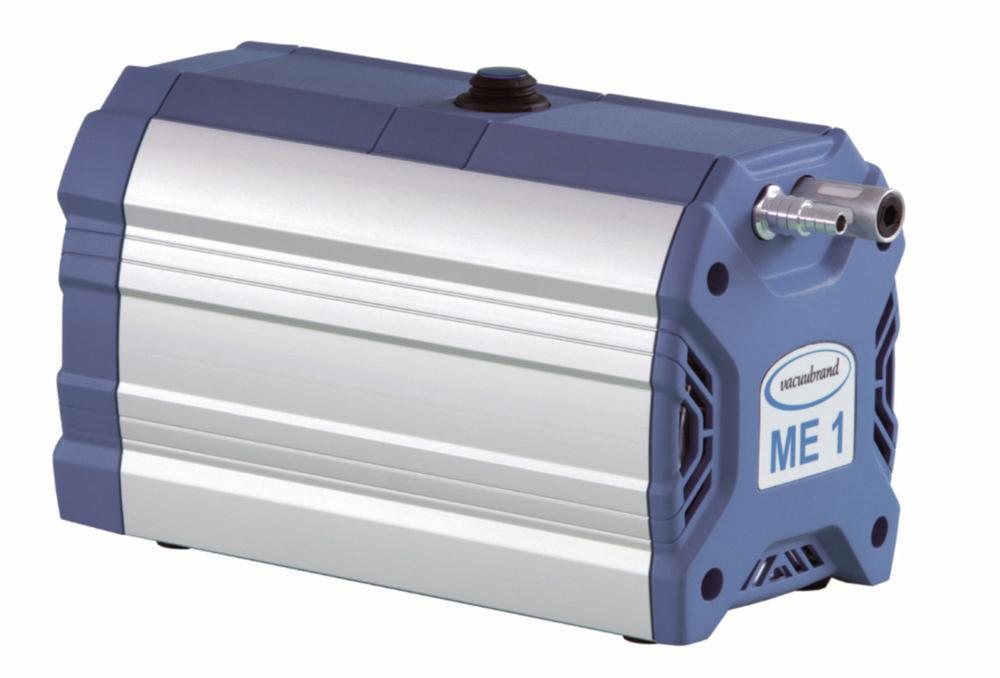

Vacuubrand Membrane Pump ME 1, 230 V, 50/60 Hz, UK Mains Cable

The Vacuubrand ME 1 is a compact, oil-free diaphragm vacuum pump designed for efficient and reliable laboratory applications. Operating at 230 V with a UK mains cable, it offers a maximum pumping speed of 0.7 m³/h and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant PTFE diaphragm and valves ensure durability and longevity in various laboratory environments.

Key Features:

• Brand: Vacuubrand
• Model: ME 1
• Voltage/Frequency: 230 V / 50–60 Hz
• Maximum Pumping Speed: 0.7 m³/h (50 Hz)
• Ultimate Vacuum: 100 mbar (75 torr)
• Number of Stages: 1
• Number of Heads: 1
• Inlet Connection: Hose nozzle DN 6–10 mm
• Outlet Connection: Silencer / G1/8"
• Rated Motor Power: 0.04 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Protection Class: IP 40 (IEC 60529)
• Dimensions (L x W x H): 270 x 121 x 155 mm
• Weight: 5.4 kg
• Noise Level: 49 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Certifications: NRTL certified

This pump is ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, offering maintenance-free operation with high chemical resistance.
