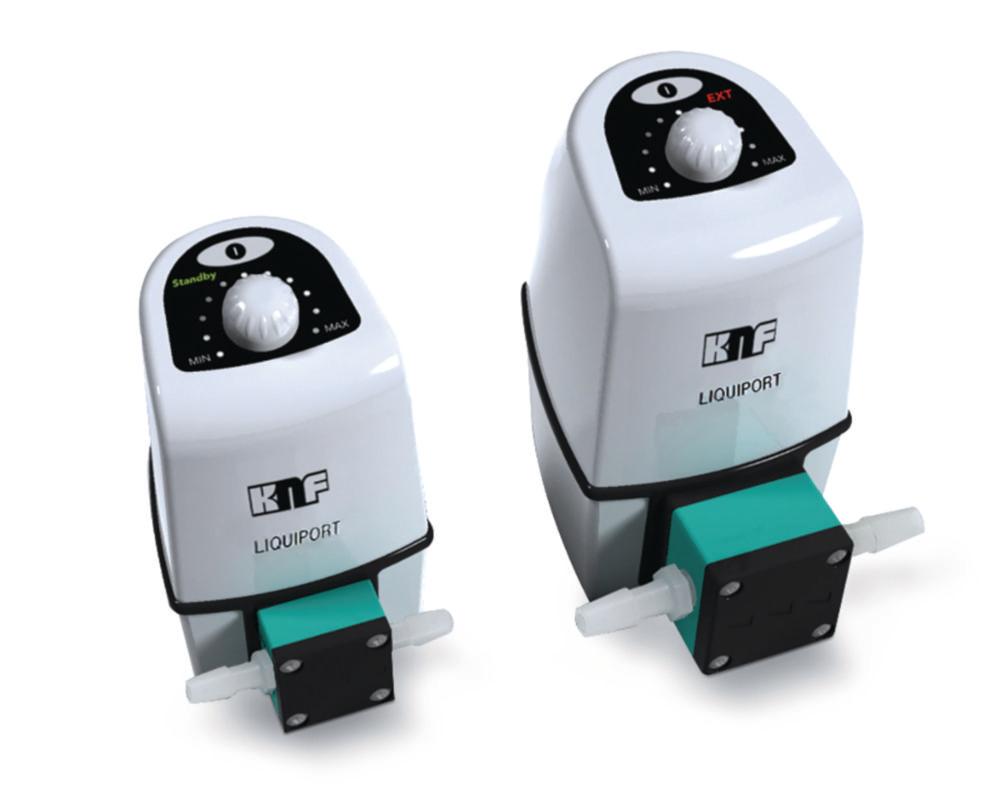

Representative image only
LIQUIPORT® Diaphragm Liquid Pump U NF 1.300 TT.18S US-Plug - 115V/60HZ
Sold by: Venktron DMCC
Available Soon
Part #: 4.686 771Manufacturer #: U179109/153257
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
- Operating pressure max. 4 bar
- For tubing ID 12 mm
Product Specifications
- HS Code #84135080
- Depth160 mm
- Dimensions (WxDxH)104 x 160 x 188 mm
- Flow rate500 ... 3,000 ml/min
- Power supply frequency60 Hz
- Height188 mm
- Material headPVDF
- Max. voltage115 V
- Power supply115 V, 60 Hz
- Rated capacity29 W
- TypeU NF 1.300 TT.18 S
- Type of auxiliary energyMains connection
- UNSPSC41105105
- Width104 mm
Variant products
Products related to this item (5)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
U179108/153257 | 4.686 770 | LIQUIPORT® Diaphragm Liquid Pump U NF 1.300 KT.18S US-Plug - 115V/60HZ | U NF 1.300 KT.18 S | Mains connection | 7٬166٫98 | |||
U179110/153257 | 4.686 772 | LIQUIPORT® Diaphragm Liquid Pump U NF 1.300 FT.18S US-Plug - 115V/60HZ | U NF 1.300 FT.18 S | Mains connection | 21٬680٫65 | |||
179110/153257 | 6.274 069 | LIQUIPORT® Diaphragm Liquid Pump NF 1.300 FT.18 S, chemically-resistant | NF 1.300 FT.18 S | Mains connection | 12٬273٫72 | |||
179109/153257 | 6.285 016 | LIQUIPORT® Membrane liquid pump NF 1.300 TT.18 S Adjustable flow rate, PVDF pump head | NF 1.300 TT.18 S | Mains connection | 5٬424٫34 | |||
179108/153257 | 7.624 906 | Membrane liquid pump NF 1.300 KT.18 S, protection IP 65 capacity 0,5-3,0 (l/min), chemical resistant | NF 1.300 KT.18 S | Mains connection | 4٬354٫52 |
Just add items to your shopping cart and select “Instant Quote”
