Bohlender Laboratory Threaded Joints, GL 14 3.20 mm, PTFE/HOSTA
Sold by: Venktron DMCC
Available Soon
Part #: 9.209 807Manufacturer #: D 590-08
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview

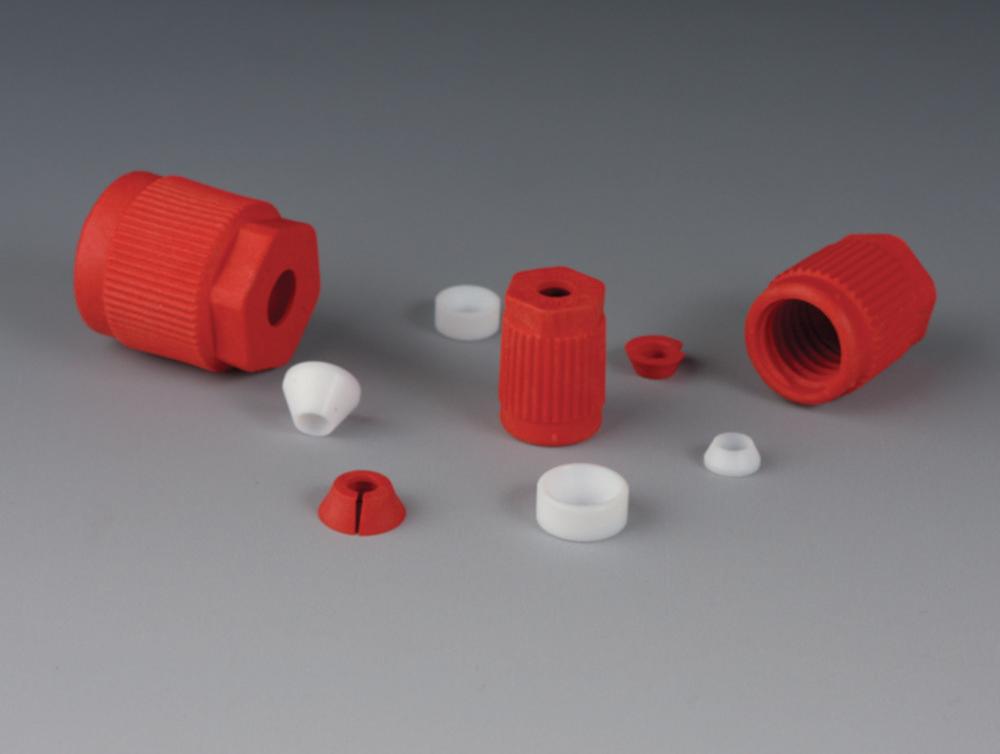

The Bohlender Laboratory Threaded Joints, GL 14 3.20 mm, PTFE/HOSTA are precision-engineered connectors designed for versatile laboratory applications. These joints enable GL threads to clamp easily to fluoroplastic or thick-walled tubing made from various materials such as plastics, glass, or metal. They are ideally suited for connection with Bola GL fittings, pressure valves, taps, and ball valves.
Key Features:
- Brand: Bohlender
- Material: PTFE/HOSTA for exceptional chemical resistance
- Thread Size: GL 14
- Bore Diameter: 3.20 mm
- Pressure Resistance: Up to 10 bar
- Vacuum Suitability: Suitable at room temperature for sizes GL 14 to GL 25
- Design: Easy assembly without tools; substance contact only with PTFE
- Applications: Ideal for holding probes, sensors, laboratory taps, submerged tubes, thermometers, or as a cable feed
- Packaging: Sold individually
These threaded joints are essential for laboratories requiring reliable and high-quality connections in various research and analytical settings.
Product Specifications
- HS Code #39269097
- ColourRed
- For ext. tubing Ø3.20 mm
- Max. pressure10 bar
- ThreadGL 14
- UNSPSC41121815
Variant products
Products related to this item (25)
product | Mfr # | Part # | Product name | Colour | For ext. tubing Ø | Price | Availability | |
D 590-06 | 9.209 809 | Bohlender Laboratory Threaded Joints GL 14 6.00 mm PTFE/Hostaform | Red | 6.00 mm | 175٫52 | In stock | ||
D 590-14 | 9.209 819 | Bohlender Screwthread Joint GL 18.6mm, PTFE/Hostaform | Red | 6.00 mm | 162٫98 | In stock | ||
D 590-16 | 9.209 820 | Bohlender Laboratory Threaded Joints GL 18 8.00 mm PTFE/Hostaform | Red | 8.00 mm | 142٫09 | In stock | ||
D 590-62 | 9.209 810 | Bohlender Laboratory Threaded Joints GL 14 6.35 mm PTFE/HOSTA | Red | 6.35 mm | 229٫84 | |||
D 590-18 | 9.209 821 | Bohlender Laboratory Screwthread Joint GL 18, 10mm, PTFE | Red | 10.00 mm | 133٫73 | |||
D 590-34 | 9.209 842 | Bohlender Laboratory Threaded Joints, GL 25 12.00 mm, PTFE/HOSTA | Red | 12.00 mm | 213٫13 | |||
D 593-06 | 9.209 803 | Bohlender Laboratory Threaded Joints GL14 1.6 mm, PTFE / HOSTA | Red | 1.60 mm | 171٫34 | |||
D 590-20 | 9.209 817 | Bohlender Laboratory Threaded Joints GL 18 3.20 mm PTFE/HOSTA | Red | 3.20 mm | 158٫80 | |||
D 590-02 | 9.209 806 | Bohlender Laboratory Threaded Joints GL 14 3.00 mm, PTFE / HOSTA | Red | 3.00 mm | 146٫26 | |||
D 593-04 | 9.209 802 | Bohlender Laboratory Threaded Joints GL14 1.0 mm, PTFE / HOSTA | Red | 1.00 mm | 259٫10 | |||
D 593-12 | 9.209 805 | Bohlender Laboratory Threaded Joints GL14 2.4 mm, PTFE / PP | Red | 2.40 mm | 208٫95 | |||
D 593-02 | 9.209 801 | Bohlender Laboratory Threaded Joints GL14 0.8mm, PTFE / PP | Red | 0.80 mm | 325٫96 | |||
D 590-10 | 9.209 816 | Bohlender Laboratory Threaded Joints, GL 18 3.00 mm, PTFE/HOSTA | Red | 3.00 mm | 142٫09 | |||
D 593-10 | 9.209 804 | Bohlender Laboratory Threaded Joints GL14 2.0 mm, PTFE / HOSTA | Red | 2.00 mm | 183٫88 | |||
D 590-36 | 9.209 843 | Bohlender Laboratory Threaded Joints, GL 25 14.00 mm, PTFE/HOSTA | Red | 14.00 mm | 204٫77 | |||
D 593-30 | 9.209 814 | Bohlender Laboratory Threaded Joints GL18 2.0 mm, PTFE / HOSTA | Red | 2.00 mm | 296٫71 | |||
D 593-26 | 9.209 813 | Bohlender Laboratory Threaded Joints GL18 1.6 mm, PTFE / HOSTA | Red | 1.60 mm | 246٫56 | |||
D 590-12 | 9.209 818 | Bohlender Laboratory Screwthread Joints GL 18, 4mm, PTFE | Red | 4.00 mm | 154٫62 | |||
D 590-22 | 9.209 836 | Bohlender Laboratory Threaded Joints GL 25 3.00 mm PTFE/HOSTA | Red | 3.00 mm | 359٫39 | |||
D 590-28 | 9.209 839 | Bohlender Laboratory Threaded Joints GL 25 6.00 mm, PTFE/HOSTA | Red | 6.00 mm | 221٫49 | |||
D 590-04 | 9.209 808 | Bohlender Laboratory Threaded Joints 4.0mm GL 14 PTFE/Hosta | Red | 4.00 mm | 129٫55 | |||
D 590-24 | 9.209 837 | Bohlender Laboratory Threaded Joints GL 25 3.20 mm PTFE/HOSTA | Red | 3.20 mm | 438٫80 | |||
D 590-32 | 9.209 841 | Bohlender Laboratory Threaded Joints GL 25, 10.00 mm, PTFE/HOSTA | Red | 10.00 mm | 200٫59 | |||
D 590-26 | 9.209 838 | Bohlender Laboratory Threaded Joints GL 25 4.00 mm PTFE/HOSTA | Red | 4.00 mm | 267٫46 | |||
D 590-30 | 9.209 840 | Bohlender Laboratory Threaded Joints, GL 25 8.00 mm, PTFE/HOSTA | Red | 8.00 mm | 213٫13 |
