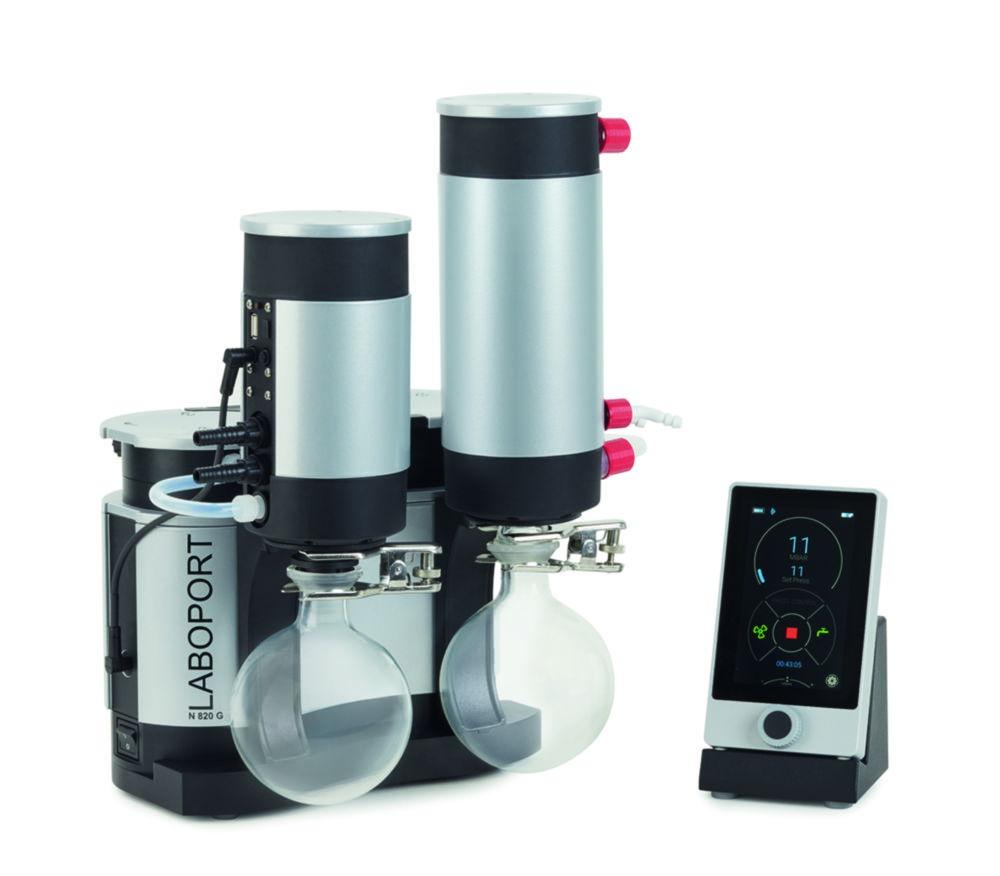

LABOPORT® Vacuum System SC 820 G
Sold by: Venktron DMCC
Available Soon
Part #: 4.686 317Manufacturer #: 329849/338082
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
Vacuum pump systems consisting of chemically resistant diaphragm vacuum pump, base plate, separator on suction side, high performance condenser on pressure side and vacuum controller for rotary evaporations, distillations and vacuum ovens. Automatic, accurate recognition and monitoring of the boiling point using the integrated ramp function.
- High recovery rates
- Wireless controller via Bluetooth for safe operation from outside closed fume hoods
- Easy, intuitive control via touchscreen display and rotation knob
- Integrated gas ballast valve
- Four operating modes
- Integrated speed control
- ATEX compliant to (Ex) II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only
Product Specifications
- HS Code #84141089
- Connection pressure sideID 10 mm
- Connection suction sideID 8 ... 9,5 mm
- Depth260 mm
- Dimensions (WxDxH)347 x 260 x 416 mm
- Flow rate20 l/min
- Height416 mm
- IP codeIP 30
- Max. permitted ambient temp.40 °C
- Max. voltage240 V
- Min. permitted ambient temperature5 °C
- Min. voltage100 V
- Plug typeEU/UK/CH
- Power supply100 ... 240 V
- Rated capacity60 W
- TypeSC 820 G
- Type of auxiliary energyMains connection
- Ultimate vacuum6 mbar
- UNSPSC40151502
- Weight13.35 kg
- Width347 mm
