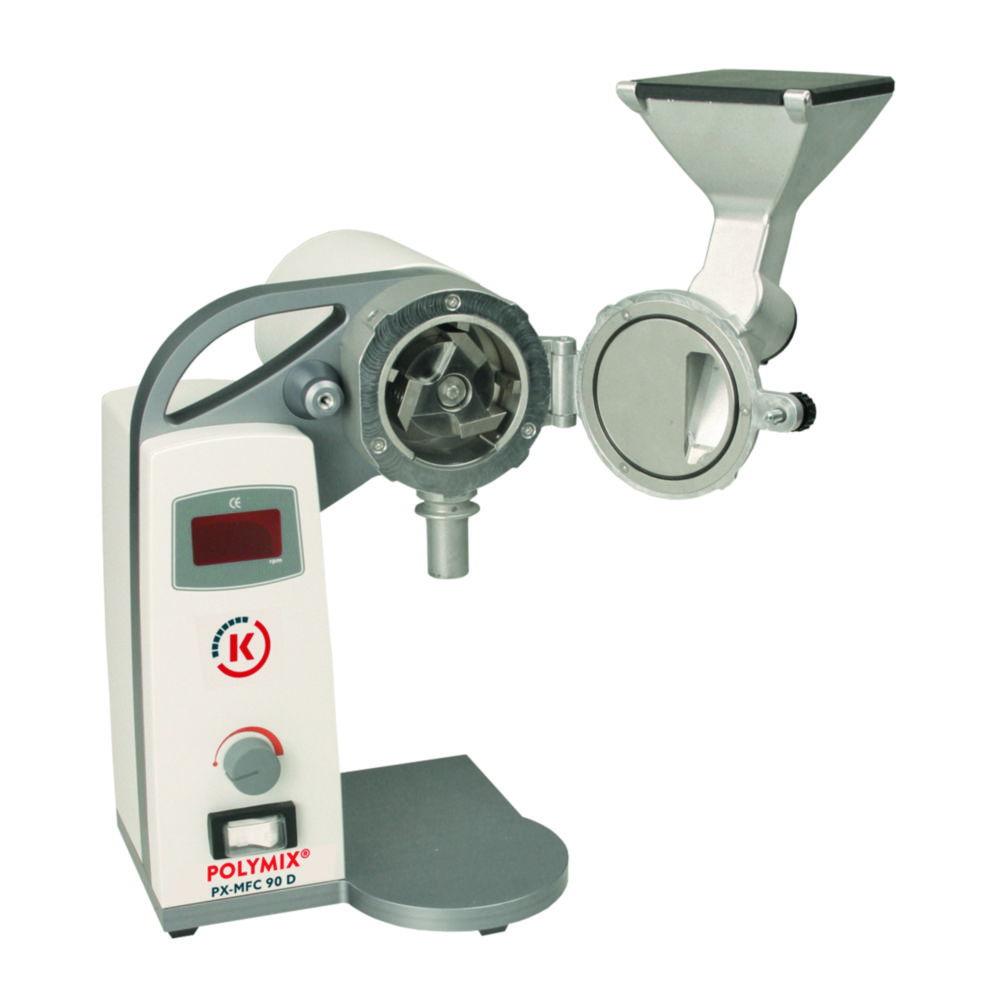

KINEMATICA POLYMIX Lab mill PX-MFC 90 D 230 V with hammer grinding attachment UK-plug
Representative image only

KINEMATICA POLYMIX Lab mill PX-MFC 90 D 230 V with hammer grinding attachment UK-plug

Sold by: Venktron DMCC
Available Soon
Part #: 6.312 152Manufacturer #: 35010022
Estimated shipping time:Contact us via live chat or via contact us page

AED 40٬891٫52

Price includes VAT
See the available (2) variant products
Product overview

The KINEMATICA POLYMIX Lab Mill PX-MFC 90 D 230 V with hammer grinding attachment (UK-plug) is a versatile and robust laboratory mill designed for efficient dry sample grinding. Equipped with a powerful 1000 Watt three-phase motor, it offers low noise operation and integrated safety features, making it ideal for processing dried, brittle, and grease-free materials such as dried grain, beans, bones, rock, and ceramics.

Key Features:

  • Brand: KINEMATICA
  • Model: POLYMIX PX-MFC 90 D
  • Voltage: 230 V with UK-plug
  • Motor: Powerful 1000 Watt three-phase motor with low noise
  • Attachment: Hammer grinding attachment for effective milling of dry samples
  • Application: Suitable for grinding dried grain, beans, bones, rock, ceramics, and similar materials
  • Safety Features: Safety system prevents start when lid is open; motor cannot operate if chamber door is open; overheating, overload, and rotor blocking protection; safety stopper for certain materials
  • Milling Chamber: Interchangeable inserts and sieves available from 0.2 mm to 6 mm diameter
  • Controls: Integrated speed control with LED display showing speed and status messages
  • Working Volume: 300 ml funnel volume
  • Packaging: Mill with hammer mill sets, 2 mm sieve, tool set, wooden stand with 12 collection tubes

Scope of Supply:

  • Mill with hammer mill sets
  • 2 mm sieve
  • Tool set
  • Wooden stand with 12 collection tubes

This KINEMATICA lab mill combines powerful performance with safety and convenience, making it an essential instrument for precise laboratory milling tasks.

Product Specifications
  • Depth325 mm
  • Dimensions (WxDxH)251 x 325 x 480 mm
  • Power supply frequency50/60 Hz
  • Height480 mm
  • IP codeIP 20
  • Max. final fineness200 µm
  • Max. speed6000 1/min
  • Max. voltage230 V
  • Min. speed50 1/min
  • Min. voltage100 V
  • Plug typeUK
  • Power supply100 ... 230 V, 50/60 Hz
  • Rated capacity1 kW
  • Speed50 ... 6,000 1/min
  • Type of auxiliary energyMains connection
  • Type of grindingdry
  • Weight12 kg
  • Width251 mm
