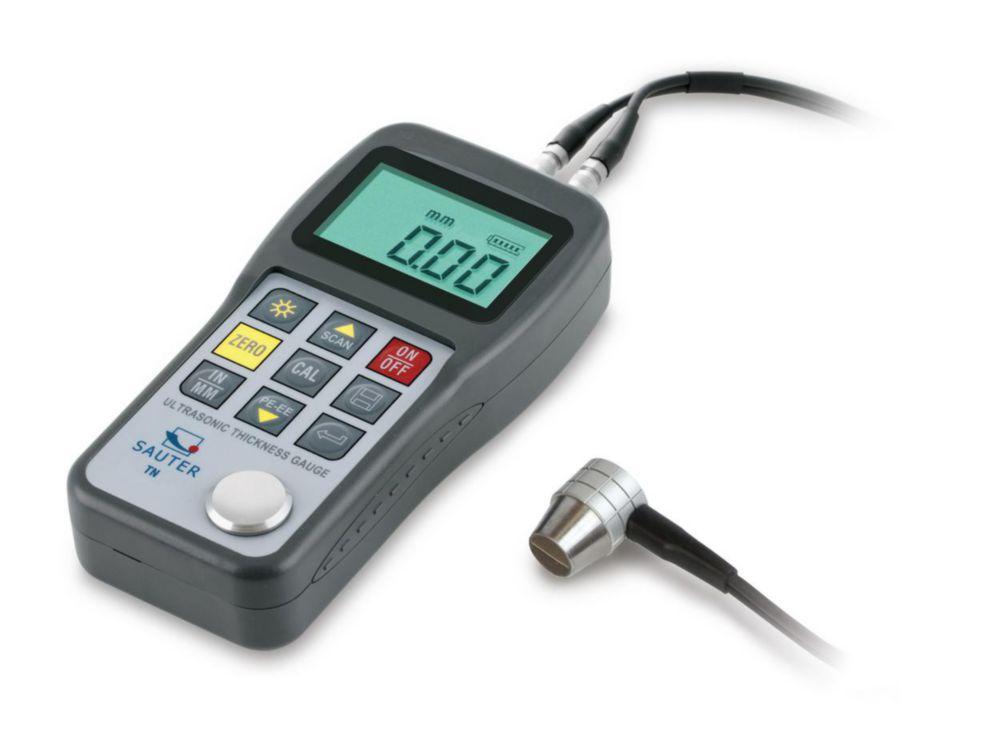

Kern Ultrasonic Material Thickness Gauge - External, d=0.01 mm (5 MHz)
Representative image only

Kern Ultrasonic Material Thickness Gauge - External, d=0.01 mm (5 MHz)

Sold by: Venktron DMCC
Available Soon
Part #: 4.691 207Manufacturer #: TN 230-0.01US
Estimated shipping time:Contact us via live chat or via contact us page

AED 2٬933٫66

Price includes VAT
See the available (5) variant products
Product overview

The Kern Ultrasonic Material Thickness Gauge is an advanced external device designed to measure material thickness with exceptional precision. Featuring a measurement accuracy of 0.01 mm and a frequency of 5 MHz, this gauge is ideal for various industrial and laboratory applications. Its non-destructive testing method ensures reliable results without compromising the integrity of the material being tested.

Key Features:

  • Brand: Kern
  • Measurement Accuracy: 0.01 mm
  • Frequency: 5 MHz
  • Type: External ultrasonic thickness gauge
  • Application: Ideal for non-destructive material thickness measurement in industrial and laboratory settings
  • Scan Mode: 10 measurements per second or single point measuring mode
  • Internal Memory: Stores up to 20 files, each with up to 100 values
  • Measuring Units: Selectable between mm and inch
  • Battery Operation: Portable and convenient for field use
  • USB Interface: Standard for models with 0.01 mm readout
  • Packaging: Sold individually

Scope of Supply:

  • Ultrasonic thickness gauge
  • External sensor
  • Carrying case

This ultrasonic thickness gauge is perfect for precise material measurement, providing quick and reliable results with minimal disruption to the material.

Product Specifications
  • HS Code #90278990
  • Battery/rechargeable battery2 x 1.5 V, AA
  • Depth74 mm
  • Designation ANSIAA
  • Dimensions (WxDxH)150 x 74 x 32 mm
  • Height32 mm
  • Max. measured value230 mm
  • Max. voltage battery/ rechargeable battery1.5 V
  • Measured range1.2 ... 230 mm
  • Min. measured value1.2 mm
  • No. of batteries/ rechargeable batteries2
  • Resolution0.01 mm
  • Tolerance0,5 %
  • Type of auxiliary energyBattery
  • Weight250 g
  • Width150 mm
