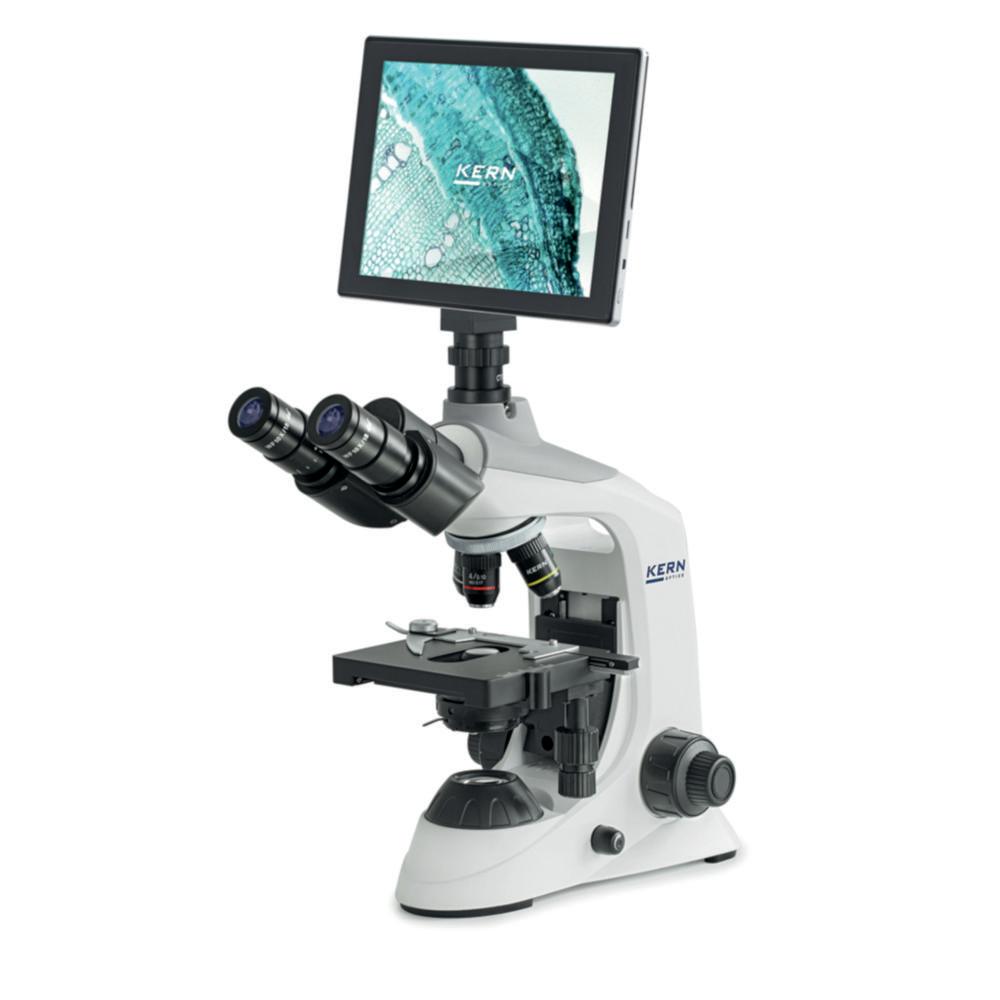

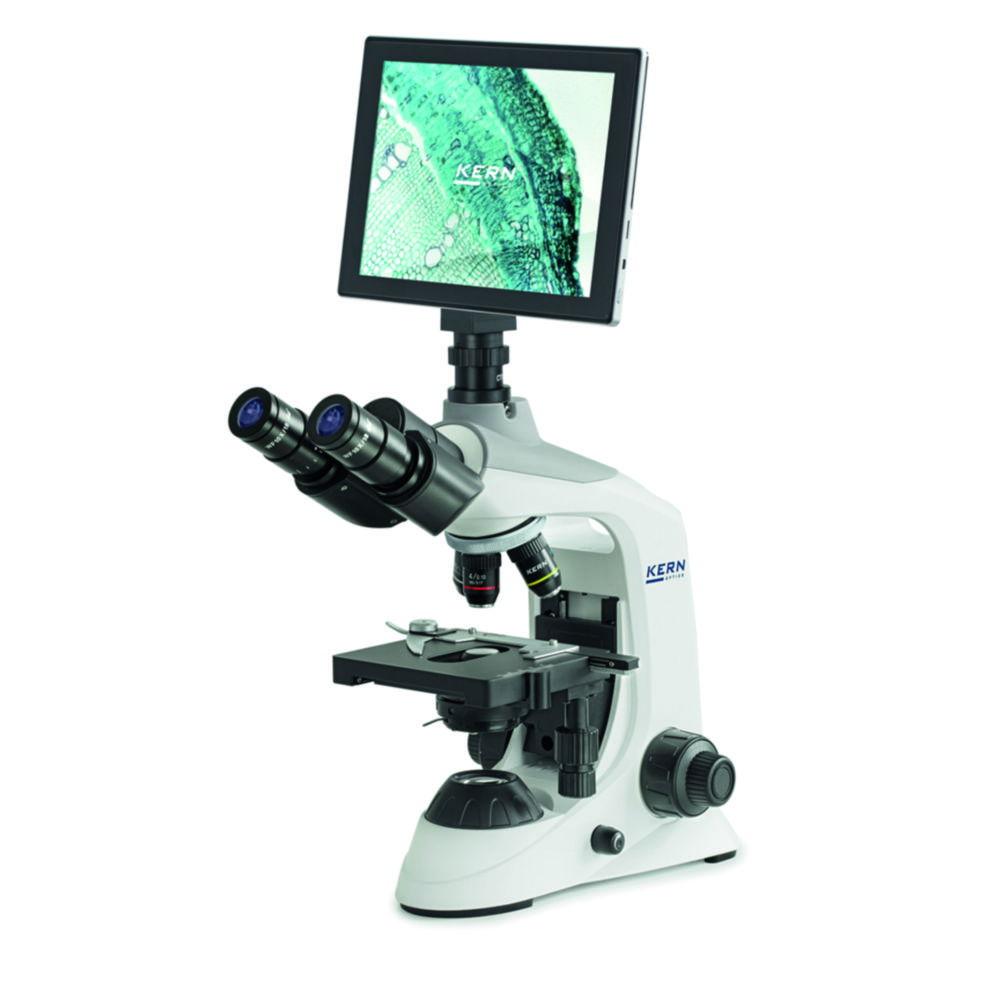

KERN Transmitted Light Microscope Digital Set OBE 134T241

The KERN Transmitted Light Microscope Digital Set OBE 134T241 is a comprehensive digital solution designed for educational institutions, training centers, and laboratories. Featuring a trinocular tube inclined at 30° and rotatable 360°, it offers high-resolution imaging and advanced digital capabilities to ensure precise and efficient sample analysis.

Key Features:

• Brand: KERN
• Optics: Trinocular tube inclined at 30°, rotatable 360°
• Diopter Adjustment: At one eyepiece tube for personalized focus
• Magnification: Objectives 4x, 10x, 40x, 100x; Eyepieces HWF 10x/18 mm
• Illumination: Dimmable 3 W LED transmitted light
• Camera: Integrated 5 MP CMOS sensor with HDMI, USB 2.0, SD card, and WiFi interfaces
• Stage: 125 × 115 mm with coaxial coarse and fine focusing
• Condenser: Abbe N.A. 1.25 with aperture diaphragm
• Power Supply: 230 V, 50 Hz (EU plug)
• Dimensions: 320 × 180 × 365 mm; Weight: 5.5 kg

Scope of Supply

• Transmitted light microscope
• Camera
• Dust cover
• Eye cups
• User manual
