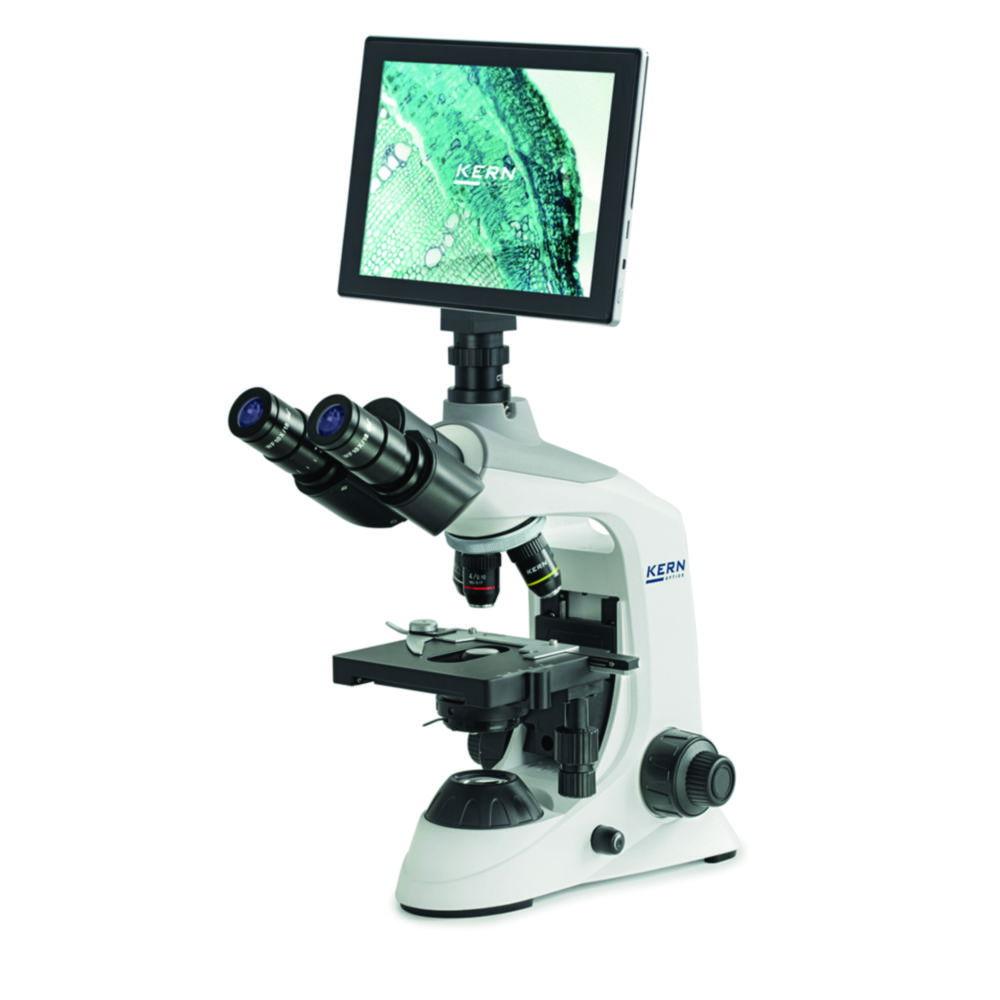

Kern Transmitted Light Microscope Digital Set OBE 124T241

The Kern Transmitted Light Microscope Digital Set OBE 124T241 is a comprehensive digital solution designed for educational and laboratory applications. Manufactured by Kern & Sohn, this microscope offers high-quality imaging and user-friendly features, making it ideal for schools, training centers, and research laboratories.

Key Features:

• Brand: Kern & Sohn
• Model: OBE 124T241
• Optics: Trinocular tube inclined at 30°, 360° rotatable
• Diopter Adjustment: At one eyepiece tube
• Eyepieces: HWF 10x/18 mm
• Objectives: 4x, 10x, 40x magnification
• Revolving Nosepiece: 4-fold
• Condenser: Abbe N.A. 1.25 with aperture diaphragm, focused
• Focusing: Coaxial coarse and fine focusing
• Illumination: Dimmable 3 W LED transmitted light
• Camera: Integrated 5 MP CMOS sensor with WLAN, USB 2.0, HDMI, and SD interfaces (15–30 FPS)
• Stage Dimensions: 125 × 115 mm
• Interpupillary Distance: 48–75 mm
• Power Supply: 230 V, 50 Hz (EU plug)
• Dimensions (W×D×H): 320 × 180 × 365 mm
• Weight: 5.5 kg

Scope of Supply

• Transmitted light microscope
• Integrated camera
• Dust cover
• Eye cups
• User manual

This set offers a ready-to-use, comprehensive digital microscopy solution for school, training, and laboratory environments. The content of the body element is displayed in your browser, ensuring clear and accessible product information for seamless integration into your digital catalog.
