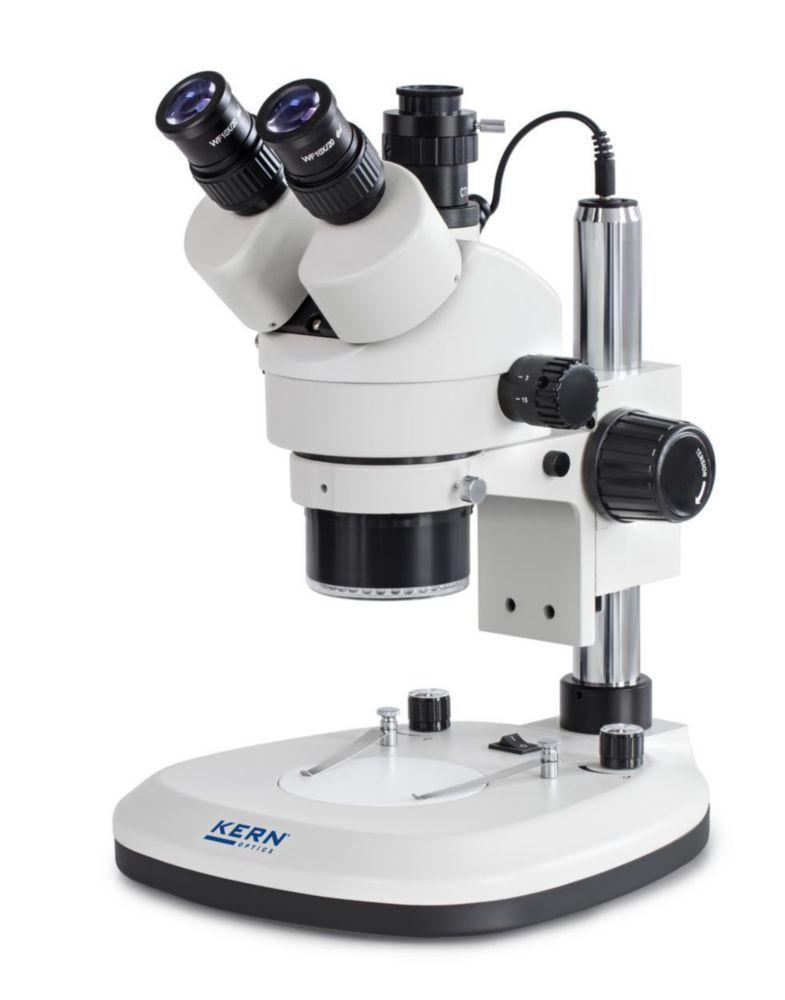

Kern Stereo Zoom Microscope Trinocular with Ring Lighting (0.7–4.5x, HWF10x20)

The Kern Stereo Zoom Microscope Trinocular with Ring Lighting (0.7–4.5x, HWF10x20) is a high-quality optical instrument designed for detailed inspection and analysis in laboratory, educational, and industrial settings. Equipped with Greenough optics and a 45° inclined trinocular tube, this flexible all-rounder delivers sharp, clear imaging and ergonomic viewing comfort, making it suitable for schools, training companies, inspection authorities, and research facilities.

Key Features

• Brand: Kern
• Optical System: Greenough
• Magnification Range: 0.7x to 4.5x
• Eyepieces: Wide Field HWF10x/20 mm
• Eyepiece Adjustment: Diopter adjustment on both sides
• Interpupillary Distance: 55–75 mm
• Tube Type: Trinocular, inclined at 45° for camera integration and comfortable viewing
• Illumination: Integrated 3W LED incident and 3W LED transmitted light, both separately dimmable
• Ring Lighting: OZL 466 model includes powerful, continuously dimmable LED ring illumination in the objective housing
• Stand: OZL 468 model includes a stable mechanical stand with integrated handle
• Dimensions (W×D×H): 300 × 240 × 420 mm
• Weight: Approximately 4 kg
• Accessories Available: Wide selection of eyepieces, auxiliary objectives, and external illumination units

Scope of Supply

• Trinocular stereo microscope
• Protective dust cover
• Eyepiece rubber caps
• Multi-lingual user instructions

This trinocular microscope is ideal for precise observation and documentation in areas such as electronics inspection, biological research, and quality control. The content of the body element is displayed in your browser, ensuring clear access to detailed product information for integration into your digital catalogue.
