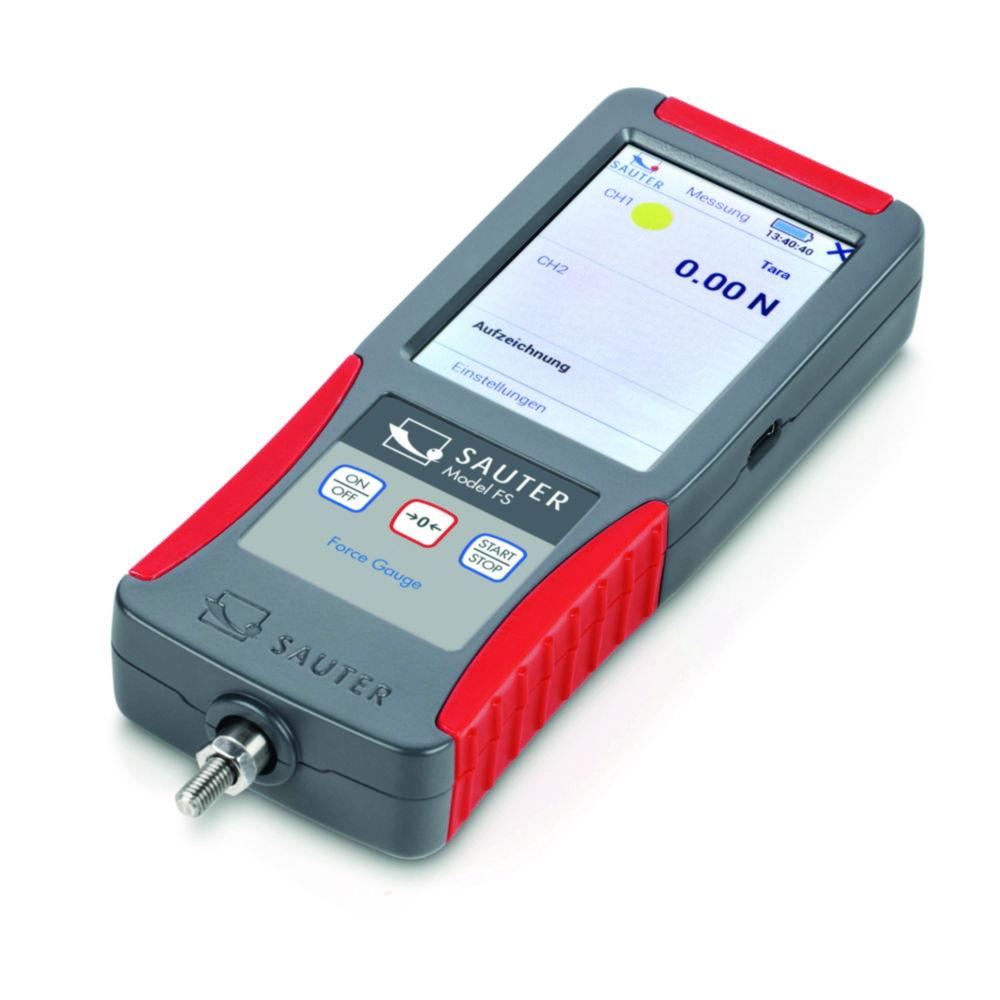

Kern FS 4-100 Electric Force Gauge (100 N, 0.02 N Readability)
Sold by: Venktron DMCC
Available Soon
Part #: 4.691 190Manufacturer #: FS 4-100
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
The Kern FS 4-100 Electric Force Gauge is a high-precision instrument designed for both tensile and compressive force measurements up to 100 N with a fine readability of 0.02 N. Ideal for laboratory and industrial applications, this device features a 3.5" touchscreen for intuitive operation and supports simultaneous measurement on up to four channels.
Key Features:
- Brand: Kern
- Maximum Force: 100 N
- Readability: 0.02 N
- Display: 3.5" touchscreen
- Measurement Channels: Up to 4 simultaneous channels
- Adjustment: Two-point adjustment with weights or numerical input
- Data Storage: Integrated SD card memory
- Interfaces: USB for programming, data transfer, and power supply
- Functions: Tolerance function, TRACK function, peak value measurement
- Power Supply: Rechargeable battery operation
- Compatibility: Can be mounted on all SAUTER test stands
- Dimensions (W×D×H): 71 × 31 × 180 mm
- Weight: Approximately 1.26 kg
- Measuring Cell: Integrated for tensile and compressive force; internal load cell disabled when external load cell connected
- Sensor Compatibility: Suitable for 4-wire and 6-wire sensors with strain gauges
- External Sensor Data: Stored directly in the connector
Scope of Supply:
- Force gauge
- System case (systainer® T-LOC)
- Plug-in power supply
- USB cable type C
This force gauge is suitable for applications requiring precise force measurements, such as quality control, material testing, and research and development.
Product Specifications
- HS Code #90248000
- Depth31 mm
- Dimensions (WxDxH)71 x 31 x 180 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Height180 mm
- Max. measured value100 N
- Max. voltage240 V
- Measured range100 N
- Min. voltage100 V
- No. of channels4
- Plug typeEU
- Power supply100 ... 240 V, 50/60 Hz
- Readability0,02 N
- Type of auxiliary energyRechargeable battery
- Width71 mm
