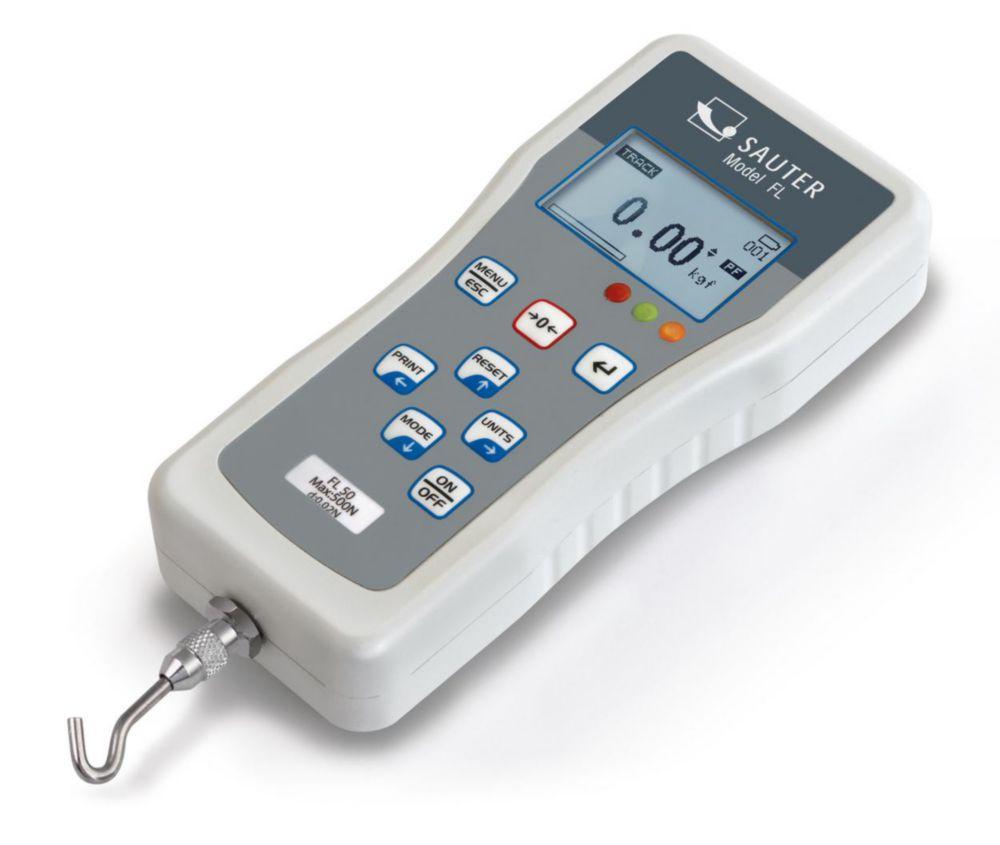

The Kern Electrical Force Gauge FL 50 is a precise and reliable instrument designed for measuring tensile and compressive forces up to 50 Newtons. Featuring a high resolution of 0.02 N, it delivers accurate readings for a wide range of applications in quality control, industrial settings, and research environments. The compact internal sensor design enhances usability and portability, making it an ideal choice for on-site and laboratory testing.
Key Features:
- Brand: Kern
- Model: FL 50
- Capacity: Max 50 N
- Readability (d): 0.02 N
- Sensor Type: Internal force sensor
- Application: Suitable for tensile and compressive force measurement in labs, production, and quality control
- Design: Compact and portable for convenient handling
- Display: Turnable display with backlight for easy reading
- Mounting: Can be mounted on all SAUTER test stands
- Housing: Durable metal housing
- Measuring Units: Selectable units: N, kN, kg, oz, lb
- Measurement Modes: Real-time or Peak Hold Mode for transient or peak observation
- Capacity Display: Bar indicator showing remaining measuring range
- Tolerance Function: Programmable upper/lower limits with acoustic and visual signals for push and pull directions
- Memory: Internal storage for up to 500 measurements
- Analogue Output: Continuous linear voltage signal (-2 to +2 V) proportional to load
Scope of Supply:
- Digital force gauge
- Hard carrying case
- 3 standard attachments (Note: FL 2K model comes with external measuring cell, tension loops, and pressure plates but no standard attachments)
Ideal for professionals needing precise force measurements in various technical and industrial environments.
