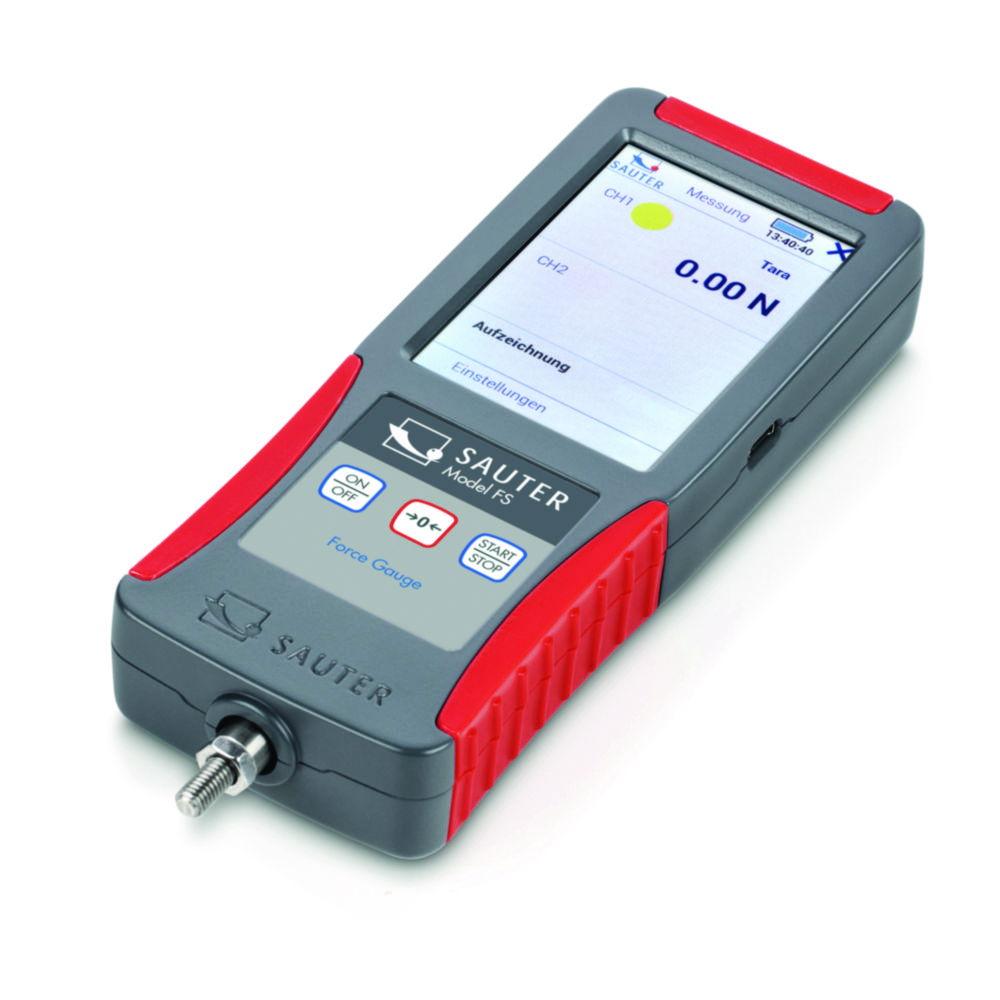

Kern Electric Force Gauge Max 100 N, d=0.02 N
Representative image only

Kern Electric Force Gauge Max 100 N, d=0.02 N

Sold by: Venktron DMCC
Available Soon
Part #: 4.691 185Manufacturer #: FS 2-100
Estimated shipping time:Contact us via live chat or via contact us page

AED 4٬337٫80

Price includes VAT
See the available (9) variant products
Product overview

The Kern Electric Force Gauge Max 100 N, d=0.02 N is an advanced electronic device designed for precise force measurements in laboratory and industrial applications. With a maximum capacity of 100 N and a sensitivity of 0.02 N, this force gauge provides accurate and reliable measurements for testing and quality control tasks. Its digital display ensures easy readability, while the ergonomic design makes it user-friendly for a wide range of applications.

Key Features:

  • Brand: Kern
  • Capacity: Up to 100 N
  • Resolution: 0.02 N for precise measurements
  • Display: Digital display for easy reading of force values
  • Applications: Ideal for force testing, quality control, and laboratory measurements
  • Design: Ergonomic and user-friendly design for comfortable use
  • Measuring Cell: Integrated for tensile and compressive force measurement; disables internal cell when external load cell connected
  • Sensor Compatibility: Suitable for 4-wire and 6-wire sensors with strain gauges
  • Display: 3.5" touchscreen
  • Multi-Channel Measurement: Simultaneous measurement on up to four channels
  • Calibration: Two-point adjustment with weights or numerical adjustment
  • Data Storage: External sensor data stored directly in connector; integrated SD card memory
  • Interfaces: USB interface for programming, data transfer, and power supply
  • Functions: Tolerance function, TRACK function for continuous measurement display, peak value measurement
  • Power: Rechargeable battery operation
  • Mounting: Compatible with all SAUTER test stands

Scope of Supply:

  • Force gauge
  • System case (systainer® T-LOC)
  • Plug-in power supply
  • USB cable type C

This electric force gauge is perfect for professionals and laboratories needing a reliable, accurate tool for force measurement and testing.

Product Specifications
  • HS Code #90248000
  • Depth31 mm
  • Dimensions (WxDxH)71 x 31 x 180 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height180 mm
  • Max. measured value100 N
  • Max. voltage240 V
  • Measured range100 N
  • Min. voltage100 V
  • No. of channels2
  • Plug typeEU
  • Power supply100 ... 240 V, 50/60 Hz
  • Readability0,02 N
  • Type of auxiliary energyRechargeable battery
  • Width71 mm
