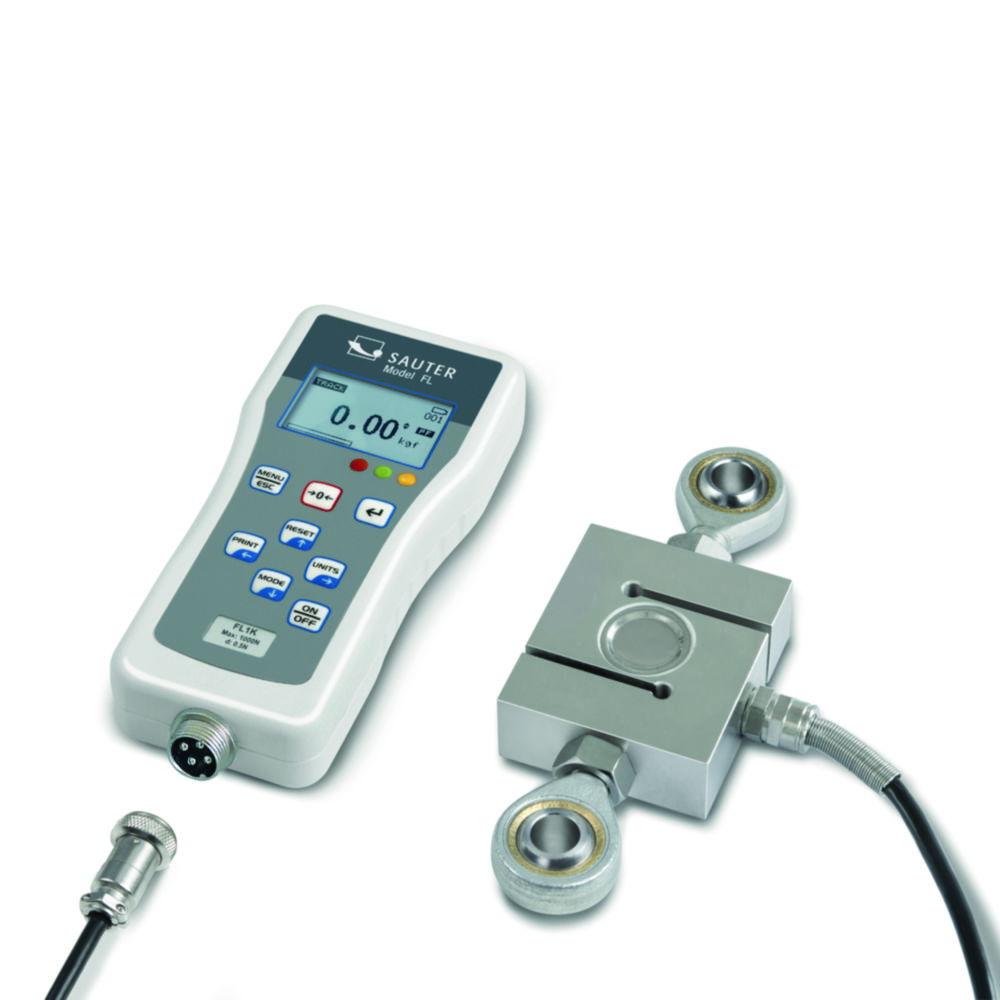

Kern Digital Force Gauge (External) Max 10 kN d=5 N
Representative image only

Kern Digital Force Gauge (External) Max 10 kN d=5 N

Sold by: Venktron DMCC
Available Soon
Part #: 4.691 180Manufacturer #: FL 10K
Estimated shipping time:Contact us via live chat or via contact us page

AED 5٬064٫95

Price includes VAT
See the available (3) variant products
Product overview

The Kern Digital Force Gauge (External) Max 10 kN d=5 N is a high-performance instrument designed for precise tensile and compressive force measurements using an external measuring cell. It offers a maximum capacity of 10 kN with a resolution of 5 N, making it suitable for demanding industrial, laboratory, and research applications. The gauge features a graphical backlit display, peak hold mode, and a capacity bar indicating the remaining measuring range. Constructed with a robust metal housing, it can be mounted on all SAUTER test stands and includes tolerance range measurement (limit-setting function) for enhanced accuracy. Additional functionalities include internal memory for up to 500 measurements, continuous analogue output, and versatile data interfaces (RS-232 and USB). The rechargeable battery operation supports portability and convenience.

Key Features:

  • Brand: Kern
  • Maximum Capacity: 10 kN
  • Resolution: 5 N for accurate force measurements
  • Display: Graphical backlit display with peak hold mode
  • Design: External force gauge with durable metal housing; mountable on SAUTER test stands
  • Functions: Capacity bar, measuring with tolerance range (limit-setting function)
  • Memory: Internal memory for up to 500 measurements
  • Output: Continuous analogue output
  • Interface: RS-232 and USB data interfaces
  • Power: Rechargeable battery operation

Scope of Supply:

  • Force gauge
  • Carrying case
  • Tension loops
  • Mains adapter

This digital force gauge is a reliable and versatile tool for professionals requiring high-capacity, precise force measurement in a variety of demanding environments.

Product Specifications
  • HS Code #90248000
  • Depth75 mm
  • Dimensions (WxDxH)170 x 75 x 30 mm
  • Height30 mm
  • Max. measured value10000 N
  • Max. voltage240 V
  • Measured range10,000 N
  • Min. voltage100 V
  • Plug typeEU/CH
  • Power supply100 ... 240 V
  • Readability5 N
  • Type of auxiliary energyRechargeable battery
  • Width170 mm
