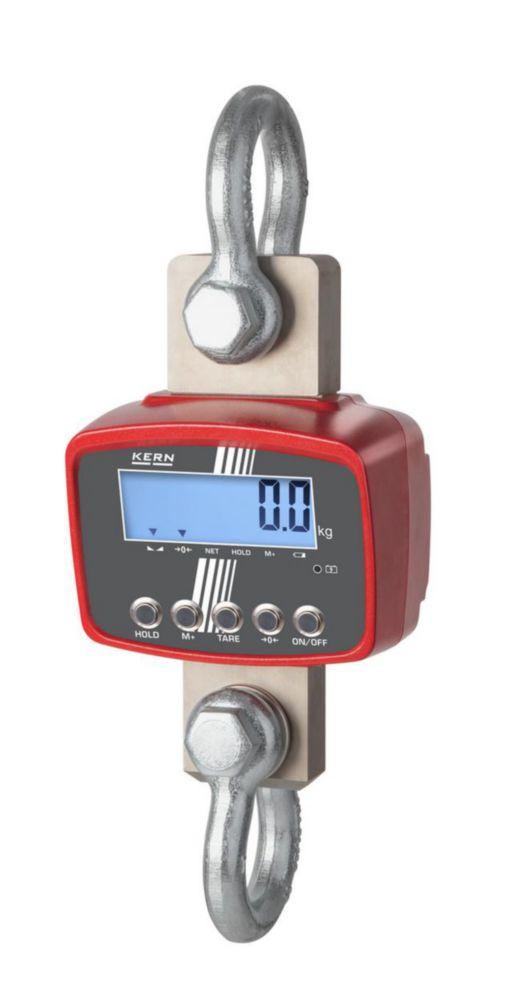

Kern Crane Scale HFD 1t 4IP with Protection Class IP67
Sold by: Venktron DMCC
Available Soon
Part #: 4.709 520Manufacturer #: HFD 1T-4IP
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
The Kern Crane Scale HFD 1t 4IP with Protection Class IP67 is a high-performance crane scale designed for weighing loads up to 1 tonne. Featuring IP67 protection, it offers dust-tight and water-resistant durability, making it suitable for challenging industrial and outdoor environments.
Key Features:
- Brand: Kern
- Capacity: 1 tonne (1000 kg)
- Protection Class: IP67 – dust-tight and water-resistant
- Durability: Robust design for harsh conditions
- Applications: Ideal for industrial lifting, shipping, and load monitoring
- Compliance: TÜV certified, meeting EN 13155 and EN 61010-1 standards
Scope of Supply:
- Crane balance
- Radio remote control (W×D×H 65×24×100 mm)
- Batteries
The Kern Crane Scale HFD 1t 4IP ensures precise, reliable measurements even in the most demanding environments.
Product Specifications
- HS Code #84238220
- Adjusting programExternal
- Battery/rechargeable battery7.4 V, Li Ion
- Depth194 mm
- Dimensions (WxDxH)422 x 194 x 129 mm
- Electrochemical systemLi Ion
- Height129 mm
- IP codeIP 67
- Material housingDie-cast aluminium
- Max. load300/600/1500 kg
- Max. voltage battery/ rechargeable battery7.4 V
- Max. voltage240 V·AC
- Min. voltage110 V
- Plug typeEU/UK/CH
- Power supply110 ... 240 V·AC
- Readability0.1/0.2/0.5 kg
- Reproducibility0.1/0.2/0.5 kg
- TypeHFD 1T-4IP
- Type of auxiliary energyMains connection/rechargeable battery
- Verified calibrationNot verifiable
- Warranty3 years
- Weight9 kg
- Width422 mm
