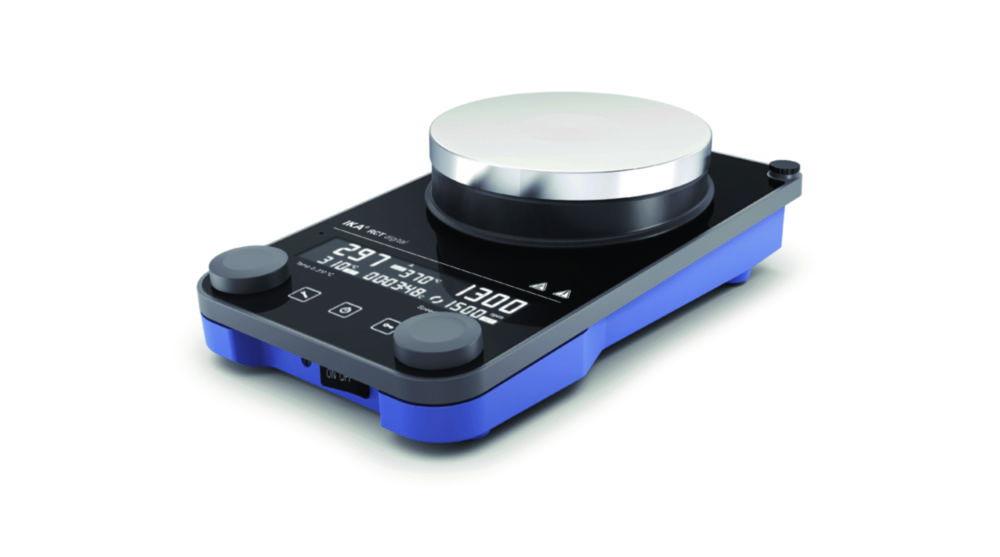

IKA Magnetic Stirrer RCT Digital with Heating, 230V 50/60Hz
Product overview
The IKA Magnetic Stirrer RCT Digital with Heating (230V, 50/60Hz) is a high-performance laboratory device engineered for precise stirring and controlled heating of liquids. Featuring a chemically resistant glass housing and an aluminium heating plate, it ensures efficient heat transfer and easy cleaning. The advanced digital control system allows accurate adjustment of stirring speed and temperature, supporting sensitive reaction kinetics with integrated timer and counter functions.
Key Features:
- Brand: IKA
- Functionality: Magnetic stirring combined with integrated heating in a compact unit
- Heating Capacity: Aluminium heating plate delivers efficient and precise temperature control up to 360 °C
- Digital Control: Intuitive LCD display with adjustable stirring direction, timer, and counter
- Surface: Glass housing for excellent chemical resistance and easy cleaning
- Temperature Sensor: PT1000 sensor enables direct medium temperature monitoring
- Safety Features: Adjustable safety circuit and IKA SmartTemp® hot surface warning to prevent burn injuries
- Connectivity: USB/RS232 interface for firmware updates and data management
- Voltage: 230V, 50/60Hz for reliable laboratory operation
- Warranty: 10 years
- Applications: Ideal for chemical laboratories, research, and educational institutions
Scope of supply: Magnetic stirrer including PT1000 temperature sensor
The IKA Magnetic Stirrer RCT Digital with Heating combines precision stirring and reliable temperature control, making it an indispensable tool for laboratory environments requiring efficiency and accuracy.
Product Specifications
- HS Code #84198998
- Control accuracy heating temperature±5 °C
- Depth270 mm
- Dimensions (WxDxH)160 x 270 x 85 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Heating capacity600 W
- Heating temperature10 ... 310 °C
- Height85 mm
- IP codeIP 42
- Material housingGlass
- Material stirring surfaceAluminium alloy
- Max. heating rate6.5 °C/min
- Max. heating temperature310 °C
- Max. permitted ambient temp.40 °C
- Max. relative humidity rate80 %
- Max. safety temperature370 °C
- Max. speed1500 1/min
- Max. stirring capacity20 l
- Max. voltage230 V
- Min. heating temperature10 °C
- Min. permitted ambient temperature5 °C
- Min. safety temperature50 °C
- Min. speed50 1/min
- Min. voltage220 V
- No. of stirring positions1
- Permitted ambient temperature5 ... 40 °C
- Plug typeEU
- Power supply220 ... 230 V, 50/60 Hz
- Rated capacity650 W
- Safety temperature50 ... 370 °C
- Speed50 ... 1,500 1/min
- TypeRCT digital
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Warranty10 years
- Weight2400 g
- Width160 mm
- With connection ext. temperature sensorYes
- With timerNo
- Working area Ø135 mm
Products related to this item (2)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
0025004735 | 6.327 592 | IKA Magnetic Stirrer RCT Digital S 1 with Heating, 115V, 50 / 60Hz US Plug | US | RCT digital | 6٬042٫83 | |||
0025005221 | 6.322 739 | IKA Magnetic Stirrer RCT Digital S 1 with Heating, 230V, 50 / 60Hz with UK Plug | UK | RCT digital | 6٬042٫83 |
