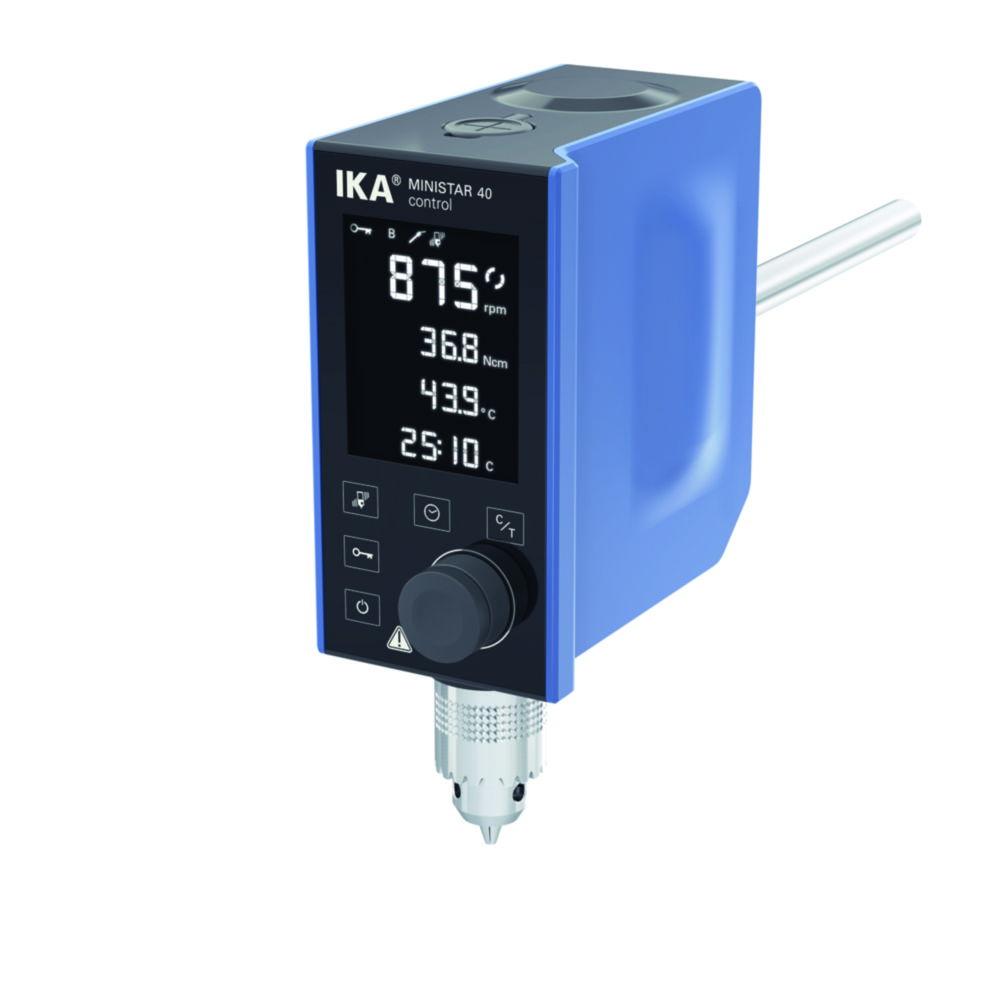

IKA Electronic Overhead Stirrer Ministar 40 Control IP 54
Product overview
The IKA Electronic Overhead Stirrer Ministar 40 Control is designed for efficient and reliable stirring in laboratory applications. With a robust design and an IP 54 protection rating, this stirrer is ideal for use in harsh environments. It offers precise control and is equipped with a high-performance motor, ensuring stable and consistent stirring even at high viscosities. Perfect for laboratories requiring precision in sample mixing, the Ministar 40 Control is a versatile and durable solution for various research and analytical tasks.
Key Features:
- Brand: IKA
- Model: Ministar 40 Control
- Motor: High-performance motor for reliable stirring
- Control: Electronic control for precise adjustments
- Protection Rating: IP 54 for dust and water resistance
- Application: Ideal for laboratory stirring applications with high viscosity liquids
- Display: Hardened glass display for maximum visibility and chemical resistance
- Safety: Vibration sensors detect deviations from permissible thresholds and automatically stop the process
- Connectivity: USB and Bluetooth interfaces for documenting parameters and installing firmware updates
- Software Integration: Easy connection to labworldsoft®
- Temperature Measurement: PT1000 sensor for direct measurement in the medium with display
- Speed Control: Continuously adjustable speed with microprocessor-controlled speed governor for constant rotational speed despite viscosity changes
- Additional Features: Key lock function, integrated timer, chemical-resistant housing
- Warranty: 10 years
Scope of supply: Overhead stirrer including temperature sensor PT1000
The IKA Ministar 40 Control is a dependable tool for laboratories that demand precision, durability, and advanced stirring control.
Product Specifications
- HS Code #84798200
- Clamping range0.5 ... 8 mm
- Depth154 mm
- Dimensions (WxDxH)70 x 154 x 193 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Height193 mm
- IP codeIP 54
- Max. clamping width8 mm
- Max. speed1000 1/min
- Max. stirring capacity25 l
- Max. temperature350 °C
- Max. torque40 Ncm
- Max. Viscosity30000 mPa·s
- Max. voltage240 V
- Min. clamping width0.5 mm
- Min. speed0 1/min
- Min. temperature-10 °C
- Min. voltage100 V
- Power supply100 ... 240 V, 50/60 Hz
- Rated capacity69 W
- Speed0 ... 1,000 1/min
- Temperature-10 ... 350 °C
- TypeMINISTAR 40 control
- Type of auxiliary energyMains connection
- Warranty10 years
- Weight1.72 kg
- Width70 mm
- With connection ext. temperature sensorYes
- With timerYes
