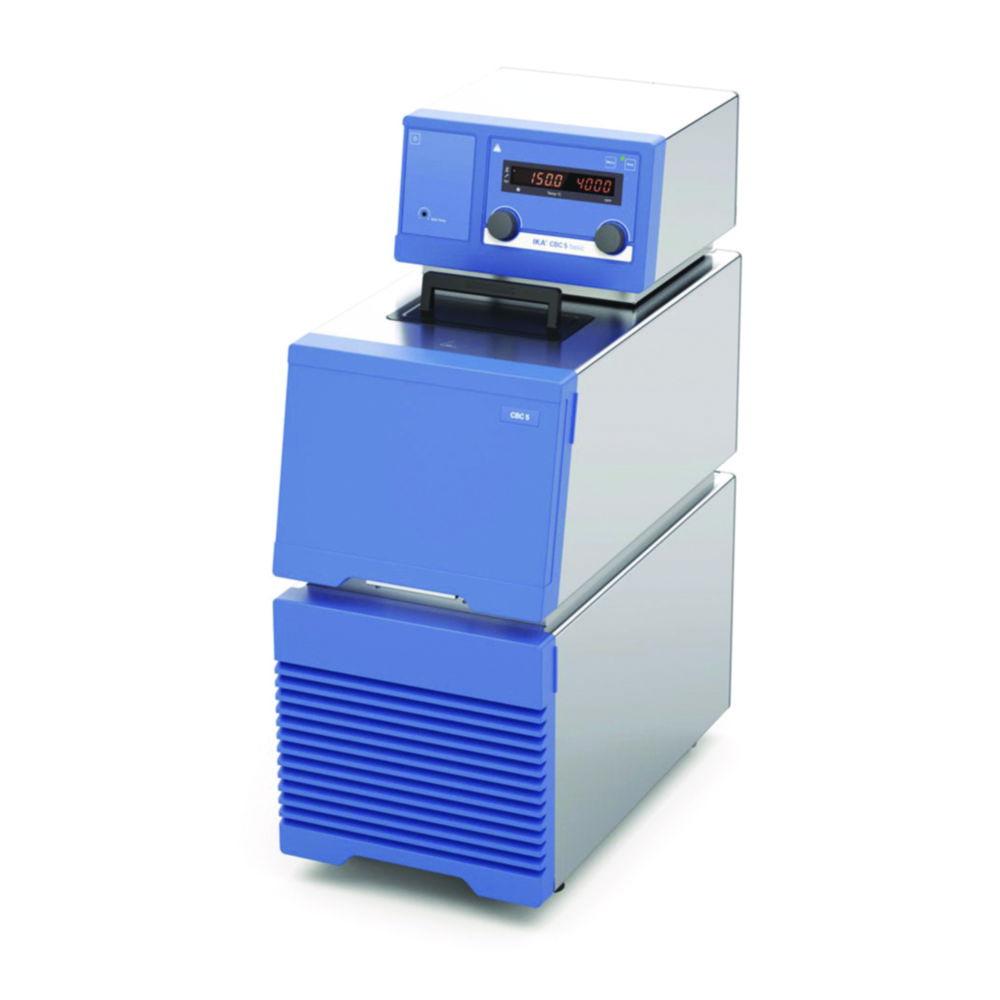

IKA Cooling and Heating Circulator CBC 5 Basic
Sold by: Venktron DMCC
Available Soon
Part #: 6.289 335Manufacturer #: 0004165000
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The IKA Cooling and Heating Circulator CBC 5 Basic is a reliable solution for precise temperature control in laboratory applications. Designed for both cooling and heating, this circulator delivers stable temperature performance for routine lab tasks. Its compact design and easy operation make it ideal for basic thermal control needs.
Key Features:
- Brand: IKA
- Model: CBC 5 Basic
- Function: Cooling and heating circulator
- Application: Ideal for routine temperature control in labs
- Design: Compact and user-friendly interface
The IKA Cooling and Heating Circulator CBC 5 Basic is the perfect choice for laboratories requiring dependable thermal regulation in daily procedures.
Product Specifications
- HS Code #84198998
- Bath depth150 mm
- Cooling capacity at 20 °C350 W
- Depth opening82 mm
- Opening (WxD)172 x 82 mm
- Ext. dim. (WxDxH)275 x 490 x 690 mm
- Ext. depth490 mm
- Ext. height690 mm
- Ext. width275 mm
- Power supply frequency50/60 Hz
- Heating capacity2500 W
- IP codeIP 21
- Max. delivery pressure0.61 bar
- Max. suction pressure0.45 bar
- Max. temperature200 °C
- Max. voltage230 V
- Max. volume bath7 l
- Min. temperature-25 °C
- Min. volume bath5 l
- Power supply230 V, 50/60 Hz
- RefrigerantR134a
- Temperature stability0,02 K
- Temperature-25 ... 200 °C
- TypeCBC 5 basic
- Type of auxiliary energyMains connection
- Type of displayLED
- Volume bath5 ... 7 l
- Weight45 kg
- Width opening172 mm
