Infrared heating using a round ceramic heating element (MA100C), a halogen round heater (MA100H) or a coiled quartz (CQR) heating element (MA100Q)
Utmost safety due to self-calibrating system and full GMP suitability
Ideally suited for samples with high moisture content due to quick control behaviour
Sample quantity 5-15g
% moisture content (optionally available with conversion factor), % dry weight, RATIO value, mg weight loss, g residue, g/kg residue, g/l residue
Temperature range and settings 30°C to 180°C, stand-by temperature selectable from 30°C to 100°C in increments of 1 degree
Heating programs: standard, quick, gentle and phase drying
Shutoff criteria (optional): fully automatic, SPRM mode (optimization to a reference system), semi-automatic (1-50mg/5-300sec.), semi-automatic (0.1-5.0%/5-300sec.), timer setting (0.1-999min.), timer setting and fully/semi-automatic (0.1-999min. and automatic), manual
Access to sample chamber Motorized cover
30 programs saved in a non-volatile memory (freely selectable parameters)
Result statistics for the last 9999 measurements/program
Menu-driven, alphanumeric dialogue text (5 languages selectable)
Optimized text entry via softkeys, numeric entry via keypad, optional data entry via barcode scanner, printout optional using an internal printer (Cat. No. 9.902 611), configurable GLP-report for measuring results, calibration, adjustment (5 languages selectable)
Internal calibration weight, automatic reproTEST for the weighing system, automatic temperature calibration with optional temperature adjustment set (Cat. No. 6.264 042) , documentation in accordance with the applicable quality assurance requirements
Safety Parameter settings password-protected against unauthorized access
Product Specifications
HS Code #90160010

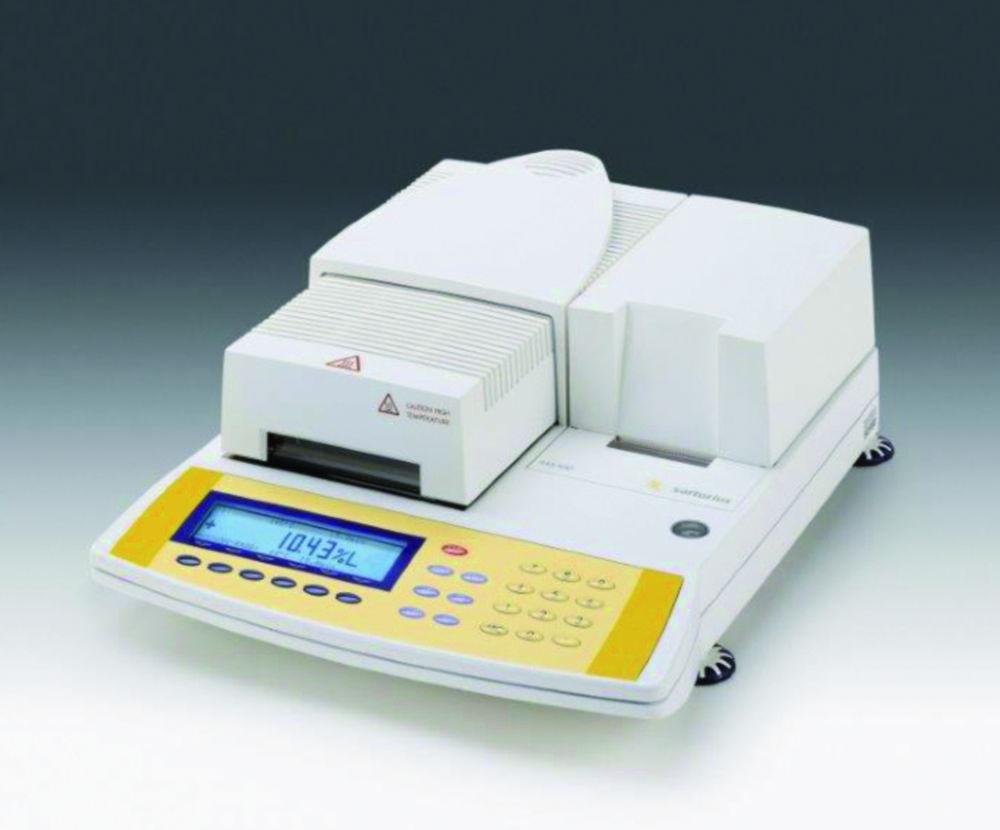

TypeMA100C
Height
mm156
Depth
mm453
Max.
temp.
°C180
Width
mm350
max. load
g100
Heating technologyCeramic radiator
Repeatability at 1 g
%0.1
Repeatability at 5 g
%0.02
Resolution
g0.001
Min.
temp.
°C30
Manufacturer Article NumberMA100C-000230V1
Dual Use0
