Hotplates,upto +300°C,350x500 mm
Part #: 9.645 785Manufacturer #: HT 22
Estimated shipping time:Contact us via live chat or via contact us page
See the available (16) variant products
Product overview

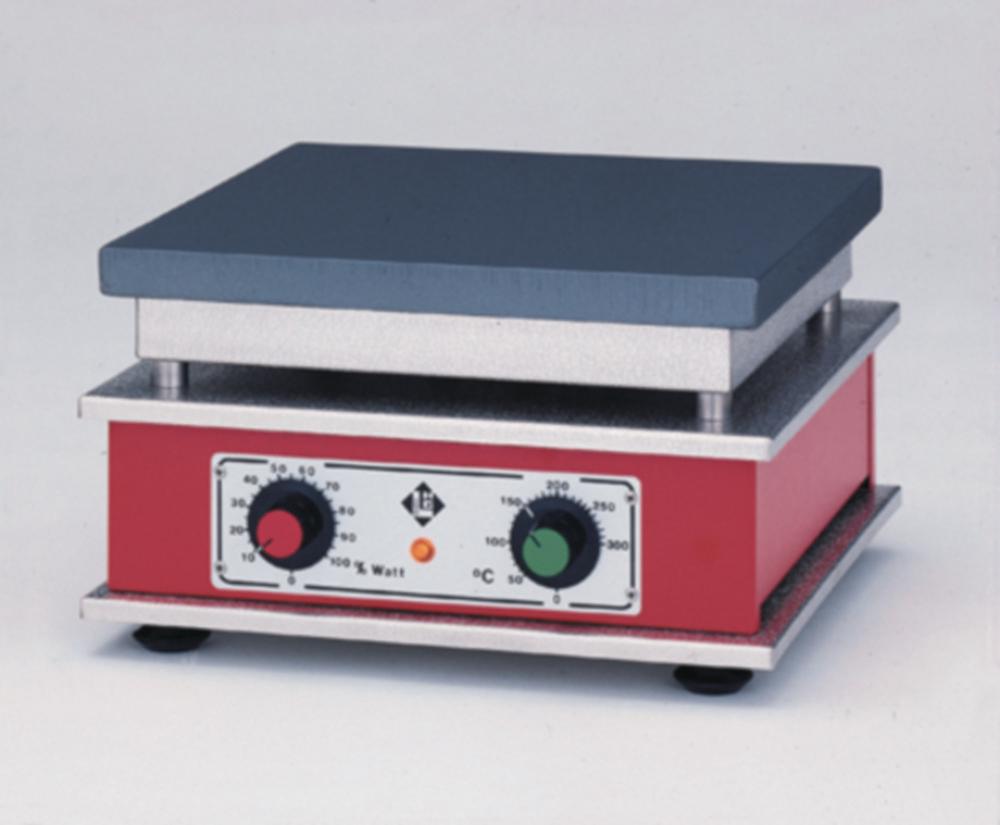

For continuous operation. Electric hotplates with thermostatic temperature control and separate power controller for performance adjustment to the heating requirements. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over entire heating surface. Stainless steel housing, with painted central section. Height-adjustable feet. Mains cable approximately 1.7 m.
Product Specifications
- HS Code #84198998
- Depth heating area500 mm
- Depth514 mm
- Dimensions heating area (WxD)350 x 500 mm
- Dimensions (WxDxH)364 x 514 x 170 mm
- DisplayAnalogue
- Heating capacity2850 W
- Height170 mm
- Material housingStainless steel
- Max. temperature300 °C
- Min. temperature50 °C
- OperationRotary knob
- Power supply230 V
- TypeHT 22
- Type of auxiliary energyMains connection
- Type of displayWithout display
- Weight19 kg
- Width heating area350 mm
- Width364 mm
Hotplates,upto +300°C,350x500 mm
US $2,300.76
Variant products
Products related to this item (16)
Product | Mfr # | Part # | Product Name | Type | Type of
auxiliary
energy | Price | Availability | |
HT 12 | 9.645 782 | Hotplates,upto +300°C,350x350 mm | HT 12 | Mains connection | $1,992.38 | |||
TH 12 | 9.645 783 | Hot plate 440x290mm 50...300°C | TH 12 | Mains connection | $2,098.64 | |||
HT 01 | 9.645 771 | Hot plate 300x300mm 30...110°C | HT 01 | Mains connection | $1,817.97 | |||
HT 02 | 9.645 781 | Hotplates,upto +300°C,300x300 mm | HT 02 | Mains connection | $1,817.97 | |||
HT 31 | 9.645 776 | Hot plate 580x430mm 30...110°C | HT 31 | Mains connection | $2,721.18 | |||
HT 11 | 9.645 772 | Hot plate 350x350mm 30...110°C | HT 11 | Mains connection | $1,992.38 | |||
HT 03 | 9.645 791 | Hot plate 300x300mm 130...370°C | HT 03 | Mains connection | $1,817.97 | |||
HT 21 | 9.645 775 | Hot plate 500x350mm 30...110°C | HT 21 | Mains connection | $2,300.76 | |||
HT 32-230 | 9.645 786 | Hotplates,upto +300°C,430x580 mm | HT 32-230 | Mains connection | $2,721.18 | |||
TH 11 | 9.645 773 | Hot plate 440x290mm 30... 110°C | TH 11 | Mains connection | $2,098.64 | |||
HT 23 | 9.645 795 | Hot plate 500x350mm 130...370°C | HT 23 | Mains connection | $2,300.76 | |||
HB 300 | 6.227 695 | Heating bench with thermostatic control and power plate, 610x160 mm, 2000W, 50...300°C | HB 300 | Mains connection | $1,791.40 | |||
HT 13 | 9.645 792 | Hot plate 350x350mm 130...370°C | HT 13 | Mains connection | $1,992.38 | |||
TH 13 | 9.645 793 | Hot plate 440x290mm 130...370°C | TH 13 | Mains connection | $2,098.64 | |||
HT 32-400 | 9.645 787 | Hotplates,upto +300°C,430x580 mm,3-phase current | HT 32-400 | Mains connection | $2,721.18 | |||
HT 33-230 | 9.645 796 | Hot plate 580x430mm 130...370°C | HT 33-230 | Mains connection | $2,721.18 |
