High temperature tube furnace RHTV 120/600/16/P570 Tmax 1600°C, incl. working tube C 799 and 2 fibre plugs 105x830 mm iØ x L

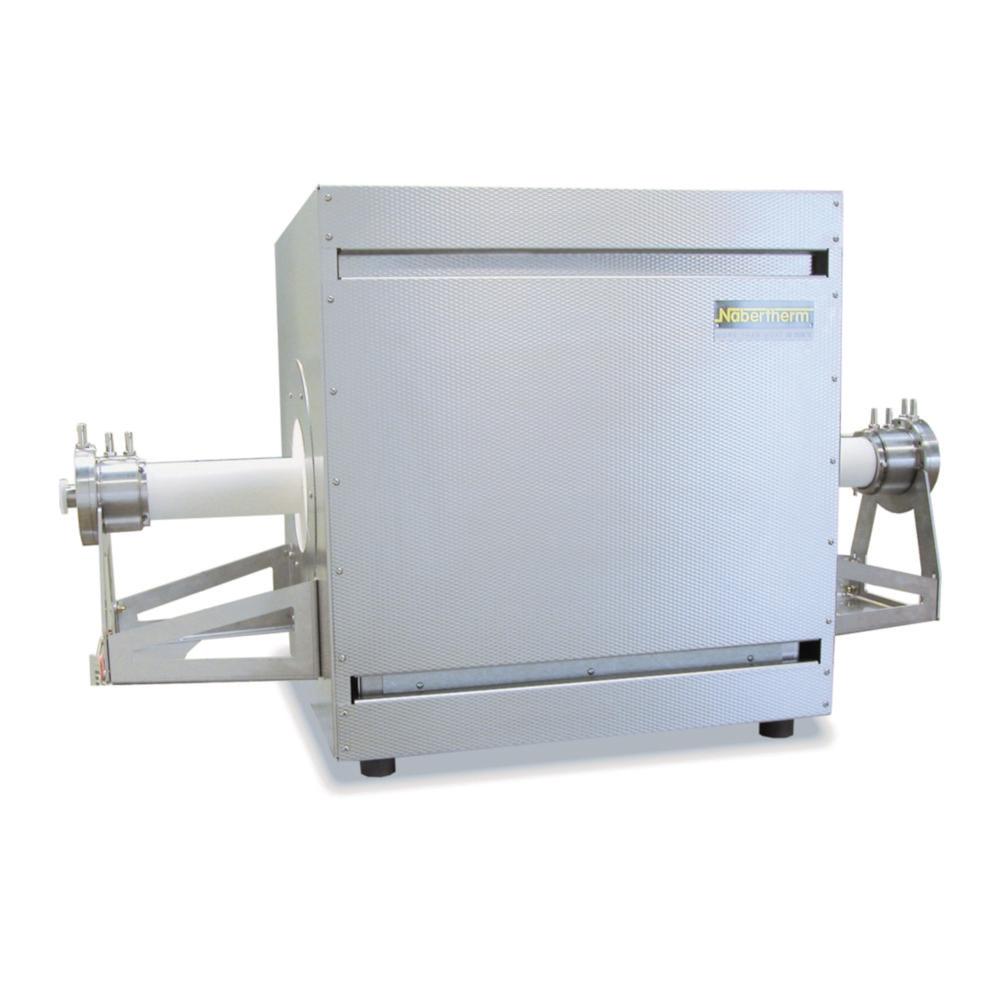

The high-temperature tube furnaces are available in either horizontal (type RHTH) or vertical (type RHTV) designs. High-quality insulation materials made of vacuum-formed fibre plates enable energy-saving operation and a fast heating time due to low heat storage and heat conductivity. By using different gas supply systems, operations can be performed under a protective gas atmosphere, vacuum, or even with flammable gasses.

• Tmax 1600 °C, 1700 °C or 1800 °C


• MoSi2 heating elements, mounted vertically for easy replacement


• Insulation with vacuum-formed ceramic fibre plates


• Rectangular outer housing with slots for convection cooling


• Models RHTV with hinges for wall mounting


• Housing made of sheets of textured stainless steel


• Ceramic working tube made of material C 799 incl. fibre plugs operation under air


• Type B thermocouple


• Switchgear separate from furnace in separate floor standing cabinet


• Switchgear with control unit


• Possible controller variants are the programmable B 500, C 550 and P 570 (threes) with adjustable ramps and hold times.


• Over-temperature limit controller with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the oven and load


• Insulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2


• Standard power supply 400 V 3/N/PE 50/60 Hz

Dimensions without tube.

Option:

• Charge control with temperature measurement in the working tube and in the oven chamber behind the tube


• Alternative working tubes designed for process requirements


• Display of inner tube temperature with additional thermocouple


• Gas-tight flanges for protective gas and vacuum operation


• Manual or automatic gas supply system


• Three- or five-zone control for optimization of temperature uniformity


• Check valve at gas outlet avoids intrusion of false air
