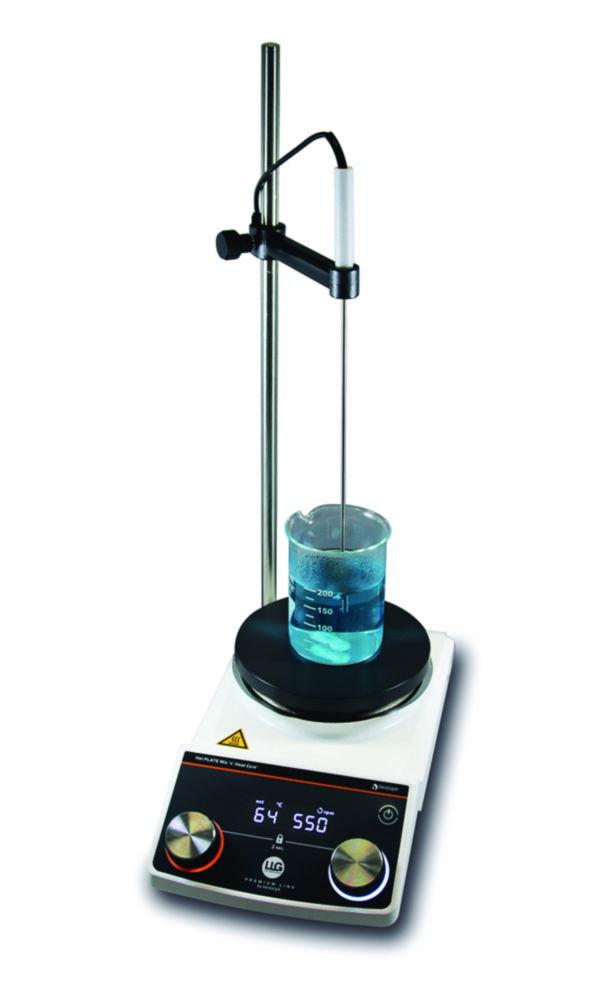

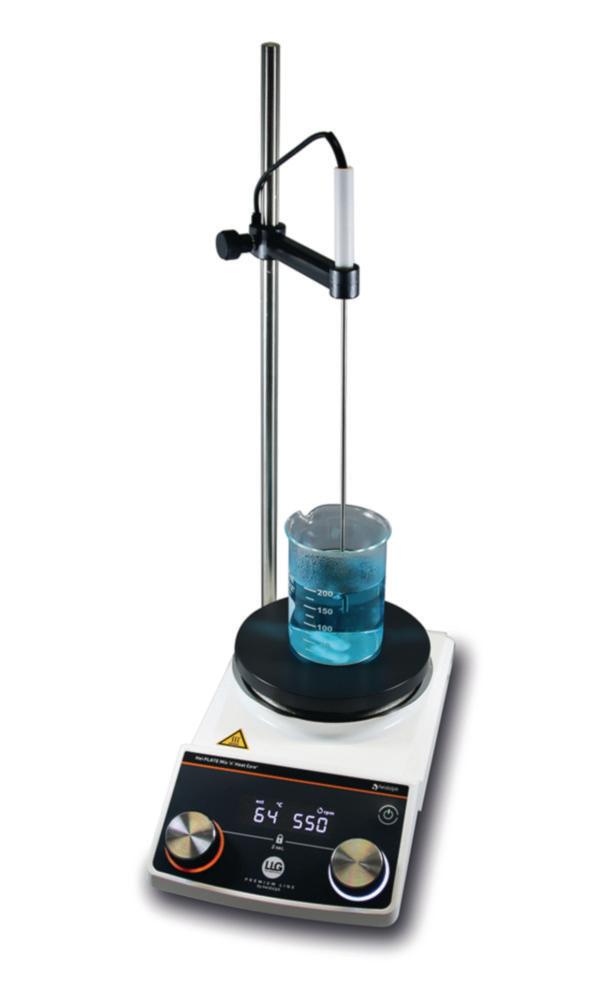

Heidolph Scientific LLG Premium Line Hei-Plate MixNHeat Core Ø145mm, 230/240V, 50/60Hz – with Temperature Sensor PT1000V4A, Holder for PT1000, Silicone Cover
Product overview
The Heidolph Scientific LLG Premium Line Hei-Plate MixNHeat Core offers superior performance for both stirring and heating applications in laboratories. Featuring a robust 145 mm diameter Kera-Disk® hot plate made of anodized aluminum, this device delivers rapid heating and excellent chemical and scratch resistance. Powered by 230/240V, 50/60Hz, it includes the high-precision PT1000V4A temperature sensor, holder, and a silicone cover. Designed for high-quality, long-term use, this premium stirrer ensures efficient, accurate, and safe operation for demanding lab environments.
Key Features:
- Brand: Heidolph Scientific
- Core Diameter: 145 mm Kera-Disk® hot plate for effective heat distribution and chemical resistance
- Power Supply: 230/240V, 50/60Hz for consistent and reliable performance
- Sealed Housing: Protects internal components from aggressive chemicals and liquids
- Temperature Sensor: Includes PT1000V4A for fast, accurate control with FAST/PRECISE heating modes
- Digital Display: Backlit for easy readability and precise parameter monitoring
- Safety Features: Optical residual heat warning >50 °C, sensor failure shutoff, locking function, and overheating protection with dual safety circuit
- User Comfort: Illuminated stir function indicator, intuitive turn-push temperature adjustment, and compatibility with EKT Hei-Con thermometers
- Applications: Ideal for high-precision chemical, biological, and analytical lab processes
Scope of Supply:
- Magnetic stirrer Hei-PLATE Mix’n’Heat Core+
- Temperature sensor Pt1000 (V4A)
- Holder for Pt1000 (incl. support rod and cable guide)
- Silicone cover
The Heidolph Hei-Plate MixNHeat Core is a premium-grade laboratory tool offering unparalleled safety, speed, and precision. Ideal for professionals seeking durable and high-performance stirring and heating, this unit ensures dependable operation for a wide range of laboratory tasks.
Product Specifications
- HS Code #84198998
- Depth299 mm
- Dimensions (WxDxH)168 x 299 x 101 mm
- DisplayDigital
- Heating capacity800 W
- Heating temperature20 ... 300 °C
- Height101 mm
- IP codeIP 42
- Max. heating temperature300 °C
- Max. permitted ambient temp.31 °C
- Max. relative humidity rate80 %
- Max. speed1400 1/min
- Max. stirring capacity20 l
- Max. voltage230 V
- Min. heating temperature20 °C
- Min. permitted ambient temperature5 °C
- Min. speed100 1/min
- No. of stirring positions1
- Permitted ambient temperature5 ... 31 °C
- Plug typeEU
- Power supply230 V
- Speed100 ... 1,400 1/min
- TypeHei-PLATE Mix ’n’ Heat Core+
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Warranty3 years
- Weight3 kg
- Width168 mm
- With connection ext. temperature sensorYes
- With timerNo
- Working area Ø145 mm
