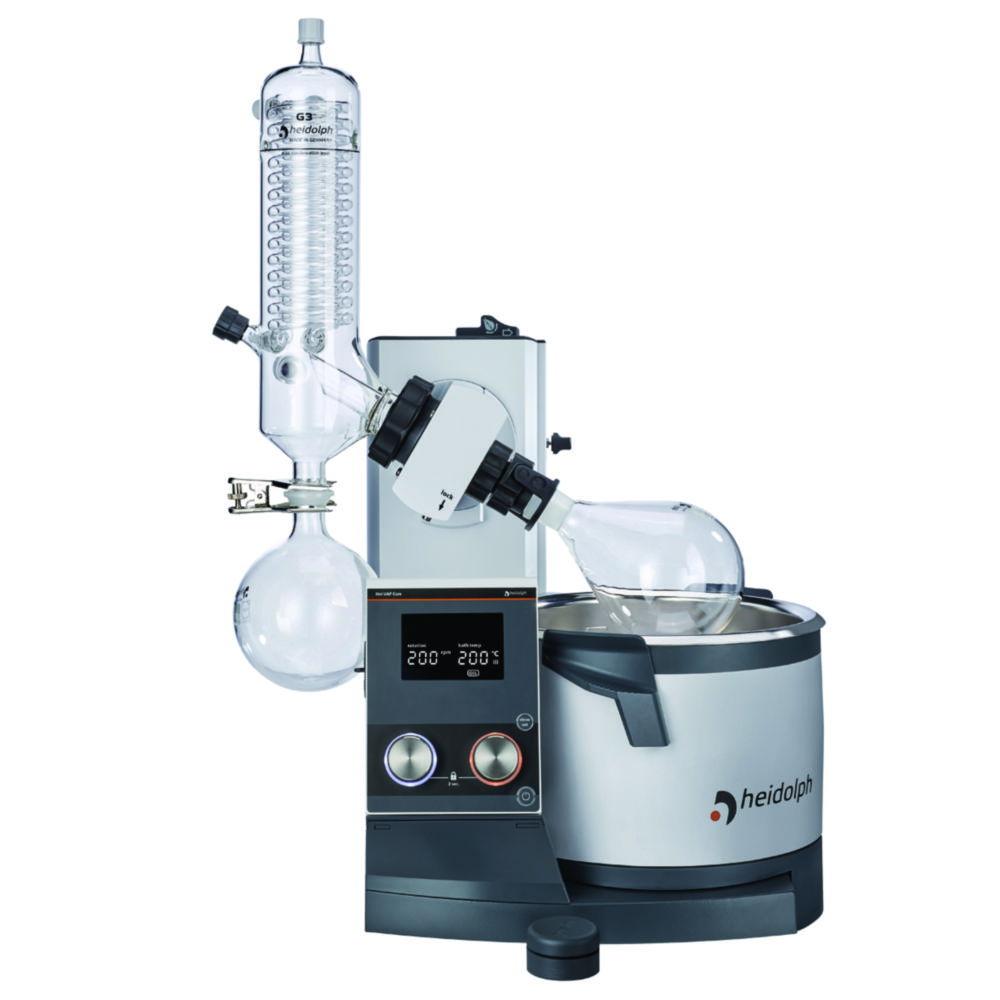

Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL-UK Hand Lift (UK-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL-UK Hand Lift (UK-Plug) is built for efficient, high-volume solvent evaporation in laboratory settings. This model features a G3 XL vertical glassware configuration and a manual hand lift mechanism for precise flask positioning. Designed for use with UK electrical systems, it offers exceptional reliability and ergonomic design for routine distillation, concentration, and solvent recovery processes.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G3 XL-UK with hand lift (UK-Plug)
• Lift Mechanism: Manual hand lift for controlled height adjustment
• Glassware Configuration: G3 XL vertical condenser for large-volume applications
• Display: Clear digital display for monitoring current values; separate button for displaying set values
• Controls: Two dedicated knobs for adjusting rotation speed and heating temperature, each with LED ring activity indicators
• Safety: Activated lock feature to prevent unintentional parameter changes; residual heat indicator above 50 °C
• Adjustability: Immersion depth up to 155 mm; flask tilt angle adjustable between 20° and 80°
• Design: Ergonomic heating bath handles for secure grip; grease-free sealing technology for low maintenance
• Compatibility: UK-Plug compliant for seamless integration in UK labs
• Optional Features: Ventilation cap with PTFE inlet and no ground joints (optional replenishment valve available); detachable control panel with optional cable extension

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-litre receiving flask
• 1-litre evaporating flask
• Supplied condenser as indicated

The Hei-VAP Core HL G3 XL-UK delivers robust performance, advanced safety features, and ergonomic handling—making it a dependable choice for laboratories in the UK requiring efficient and precise solvent evaporation.
