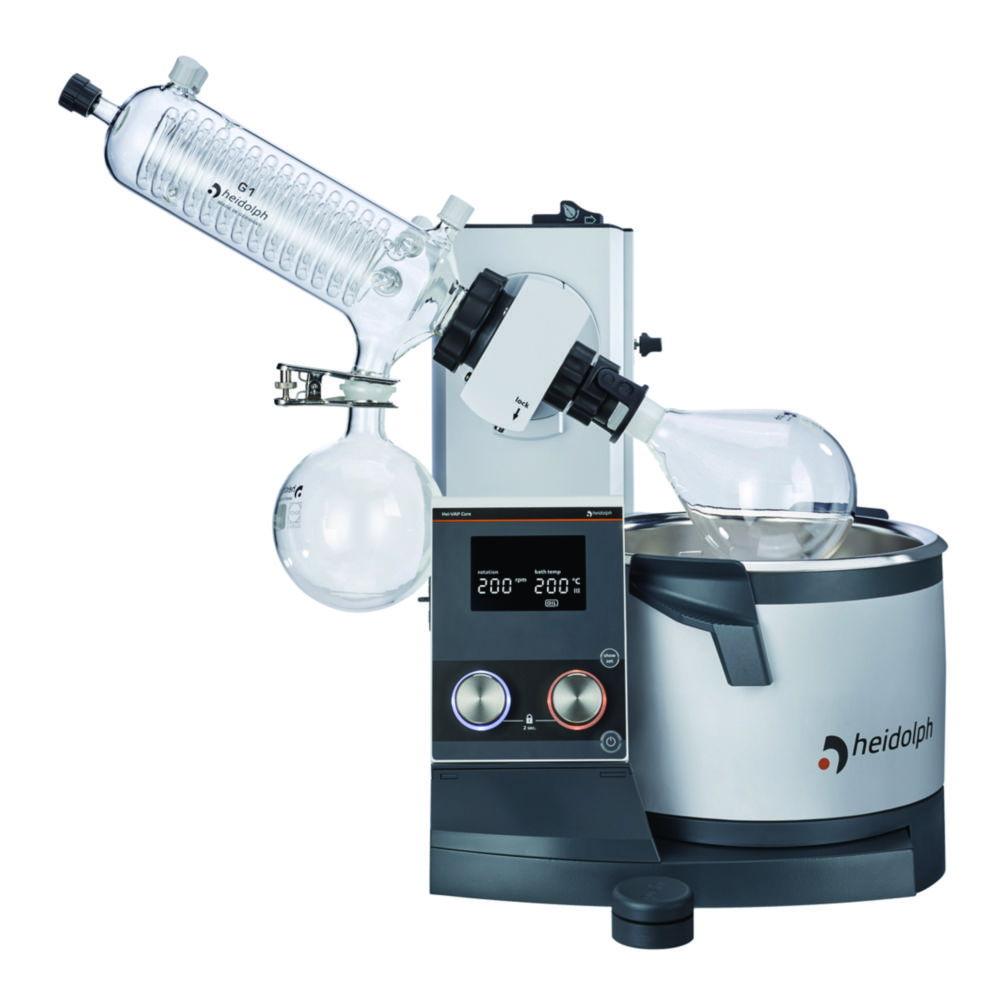

Heidolph Rotary Evaporator Hei-VAP Core HL G1-CH Hand Lift (CH-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G1-CH Hand Lift (CH-Plug) is engineered for efficient and reliable solvent evaporation in laboratory settings. Featuring a clear digital display, separate knobs for rotation speed and heating temperature, and an LED ring light system for activity indication, this unit ensures precise control and user-friendly operation. The hand lift mechanism allows for easy adjustment of immersion depth up to 155 mm and tilt angle from 20° to 80°, accommodating various experimental needs.

Key Features:

• Brand: Heidolph
• Display: Clear digital display for monitoring current values and separate button to display set values
• Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
• Safety: Activated lock feature to prevent inadvertent adjustments; residual heat indicator when >50 °C
• Standby: Standby button stops all functions and lifts evaporator flask on motor lift models
• Design: Ergonomically optimized heating bath handles for secure grip; grease-free operation with innovative sealing technology
• Adjustability: Immersion depth adjustable up to 155 mm; tilt angle from 20° to 80°
• Ventilation: Ventilation cap with PTFE inlet and free of ground joints; optional replenishment valve available
• Extras: Optional cable extension; detachable operating panel for use outside closed fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

This rotary evaporator is an indispensable tool for laboratories requiring precise and efficient solvent evaporation solutions.
