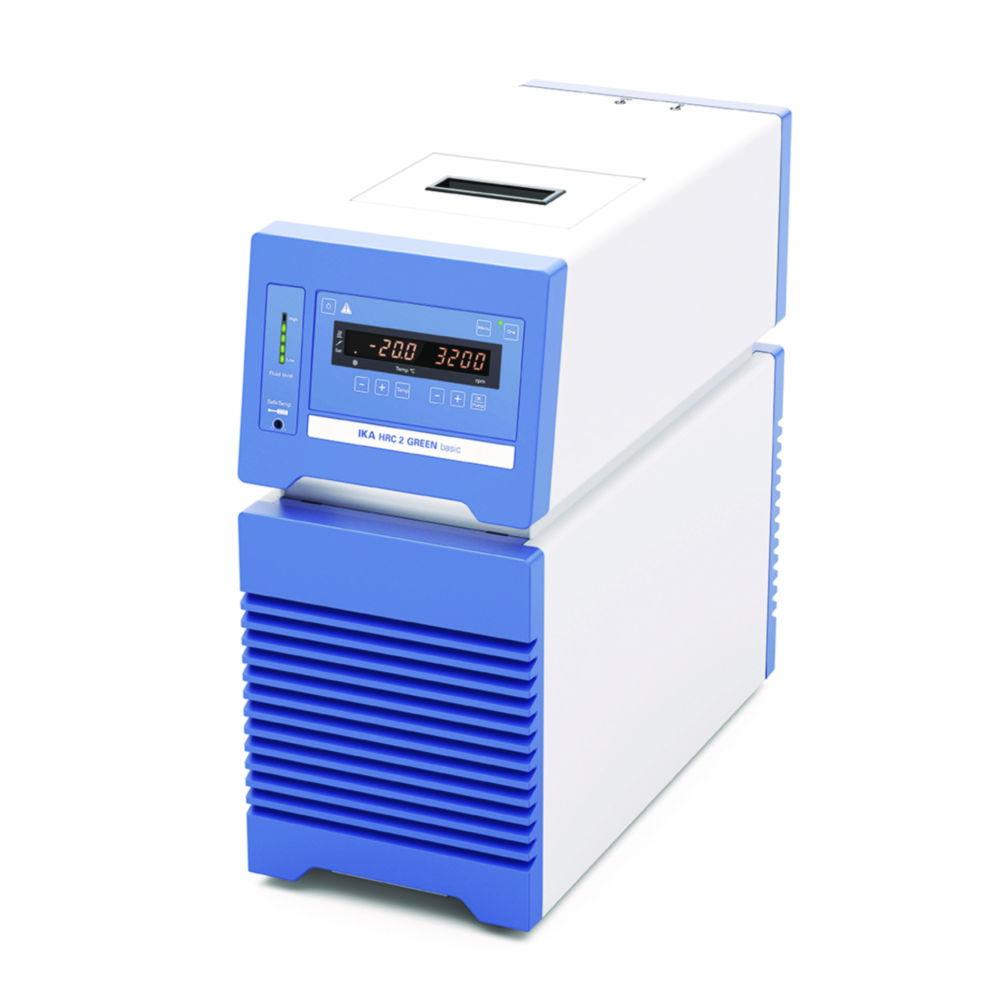

Cooling a.heating circulator HRC 2 GREEN basic S2 UK plug
Sold by: Venktron DMCC
Available Soon
Part #: 4.714 321Manufacturer #: 0020128736
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
The compact refrigerated/heated circulator impresses with an operating temperature range of -30 to 100 °C and a powerful, continuously adjustable pressure and suction pump. The demand- and speed-controlled compressor, which is operated with natural refrigerant, achieves high energy efficiency. The insulation of the bath reservoir enables fast heat-up times and reduces heat input at low temperatures.
- Demand-controlled cooling unit
- Natural refrigerant R290
- Speed-controlled PEEK pump
- Digital level indicator
- Integrated filling funnel and drain valve enable safe and clean handling of the thermofluid
- Use of up to 2.5 l of thermofluid without refilling
- Easy-to-clean stainless steel mesh air filter
- Adjustable safety circuit
- RS 232 and USB interfaces
- Safety classification III (FL) in accordance with DIN 12876
Product Specifications
- HS Code #84198998
- Cooling capacity at 20 °C620 W
- Ext. dim. (WxDxH)220 x 525 x 480 mm
- Ext. depth525 mm
- Ext. height480 mm
- Ext. width220 mm
- Power supply frequency50/60 Hz
- Heating capacity1500 W
- IP codeIP 21
- Max. delivery pressure0.5 bar
- Max. suction pressure0.25 bar
- Max. temperature100 °C
- Max. voltage230 V
- Max. volume bath4 l
- Min. temperature-30 °C
- Min. volume bath1.4 l
- Plug typeUK
- Power supply230 V, 50/60 Hz
- RefrigerantR290
- Temperature stability±0,1 K
- Temperature-30 ... 100 °C
- TypeHRC 2 GREEN basic
- Type of auxiliary energyMains connection
- Volume bath1.4 ... 4 l
- Weight26 kg
