Buddeberg Compressed Air Container Stirrer PMC 120/600 Ex II 2G c T5 (ATEX)

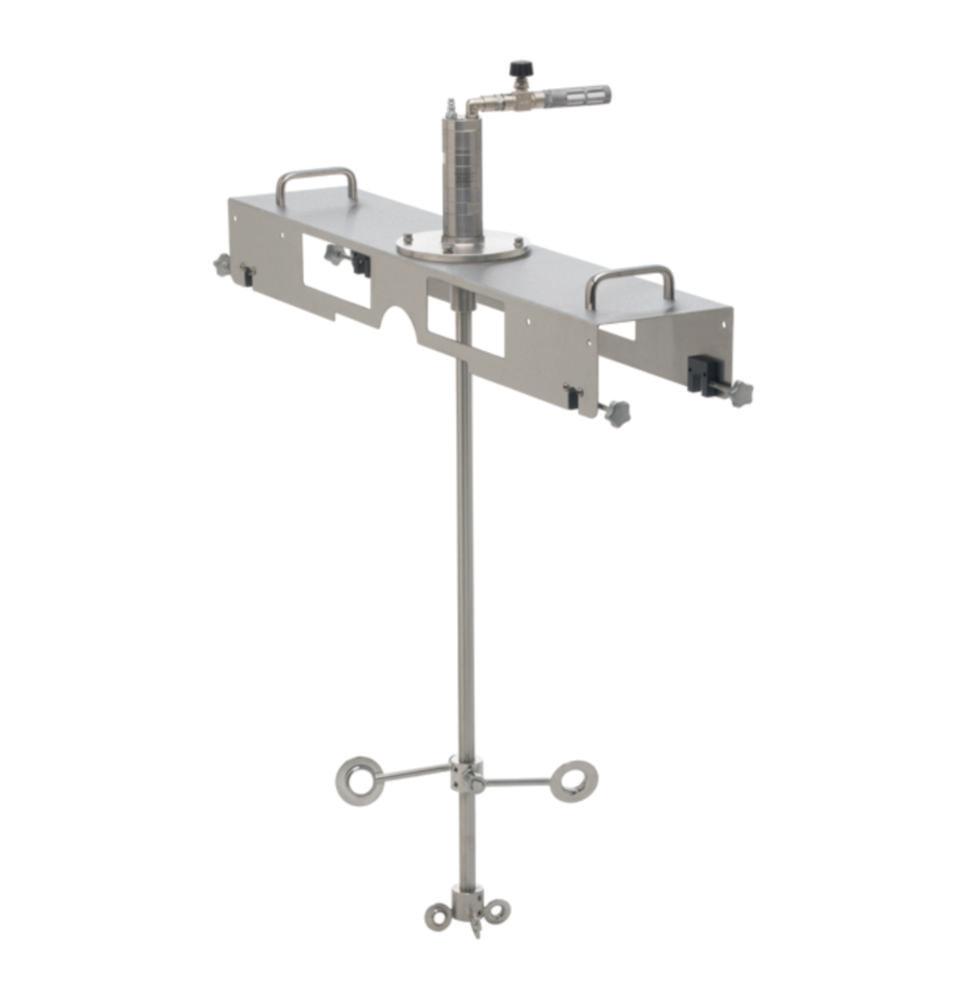

Representative image only

Buddeberg Compressed Air Container Stirrer PMC 120/600 Ex II 2G c T5 (ATEX)

Sold by: Venktron DMCC
Available Soon
Part #: 9.779 353Manufacturer #: 40 26446 00811 6
Estimated shipping time:Contact us via live chat or via contact us page

AED 22٬491٫38

Price includes VAT
See the available (1) variant product
Product overview

The Buddeberg Compressed Air Container Stirrer PMC 120/600 Ex II 2G c T5 (ATEX) is engineered for efficient mixing of high-viscosity media in Intermediate Bulk Containers (IBCs) up to 1500 L. Designed for use in potentially explosive atmospheres, it complies with ATEX regulations for zones 0 and 1, ensuring safe operation in hazardous environments.

Key Features:

  • Brand: Buddeberg
  • Power: 1200 W motor drive PM 120 made of stainless steel
  • Viscosity Range: Up to 100,000 mPas
  • Off-load Speed: 600 rpm
  • Capacity: Suitable for IBCs up to 1500 L
  • ATEX Certification: Ex II 1/2G Ex h IIB T5 Ga/Gb
  • Construction: Stainless steel motor drive with foldable stirring system
  • Air Consumption: 23 L/sec at 6 bar
  • Operating Pressure: Max. 6 bar
  • Temperature Class: T5 (max. 100°C)
  • Easy Maintenance: Tool-free disassembly for cleaning

This stirrer is ideal for industries requiring reliable and safe mixing solutions in explosive atmospheres.

Product Specifications
  • HS Code #84798200
  • ATEX certificationEx II 1/2G Ex h IIB T4
  • Compressed air consumption23 l/s
  • Idle speed600 1/min
  • Max. operating pressure6 bar
  • Max. stirring capacity1500 l
  • Max. Viscosity100000 mPa·s
  • Nominal torque38 Ncm
  • Operating press bar6 bar
  • Rated capacity1200 W
  • TypePMC 120/600
