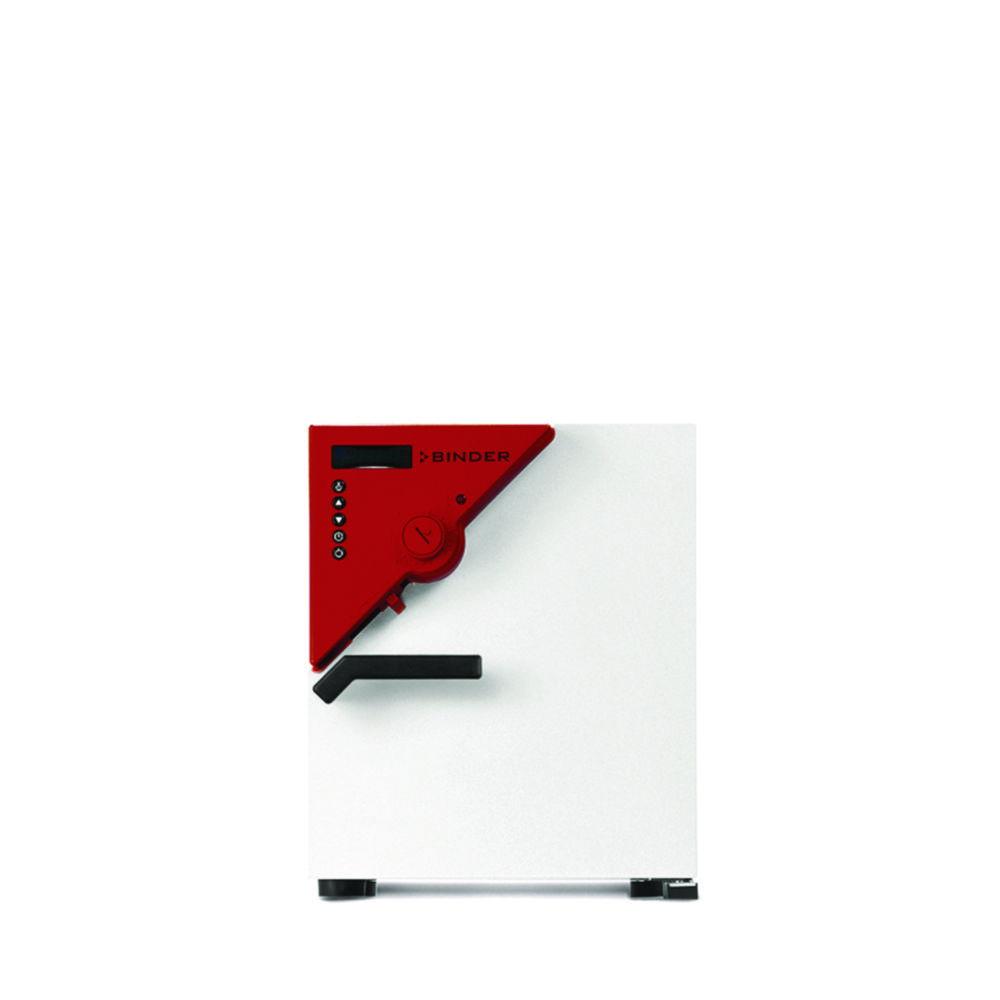

Binder Drying Oven / Hot-Air Sterilizer ED 23-UL, 23 L, Natural Air Circulation, 115 V, 60 Hz, without RS 422
Representative image only

Binder Drying Oven / Hot-Air Sterilizer ED 23-UL, 23 L, Natural Air Circulation, 115 V, 60 Hz, without RS 422

Sold by: Venktron DMCC
Available Soon
Part #: 9.883 612Manufacturer #: 9010-0192
Estimated shipping time:Contact us via live chat or via contact us page

AED 8٬842٫76

Price includes VAT
See the available (3) variant products
Product overview

The Binder ED 23-UL is a compact and high-performance drying oven and hot-air sterilizer with natural air circulation, specially designed for uniform temperature control and sterilization processes. With a chamber volume of 23 litres, it is suitable for use in laboratories requiring precise thermal environments, such as material testing, sample drying, and sterilization of glassware or instruments. This model operates on 115 V, 60 Hz and comes without RS 422 interface for users who do not require external data communication.

Key Features:

  • Brand: Binder
  • Model: ED 23-UL
  • Type: Drying oven / Hot-air sterilizer
  • Chamber Volume: 23 litres
  • Air Circulation: Natural convection
  • Electrical: 115 V, 60 Hz
  • Interface: Without RS 422
  • Applications: Sterilization, drying, thermal testing

This model is ideal for space-restricted laboratory settings where efficient heat distribution and reliable performance are essential. The absence of an RS 422 interface simplifies usage for applications that don’t require data logging or external control.

Product Specifications
  • HS Code #84198998
  • Depth int.300 mm
  • Ext. dim. (WxDxH)435 x 520 x 495 mm
  • Ext. depth520 mm
  • Ext. height495 mm
  • Ext. width435 mm
  • Power supply frequency60 Hz
  • Height int.330 mm
  • Int. Dim. (WxDxH)222 x 300 x 330 mm
  • Int. width222 mm
  • IP codeIP 20
  • Material interiorStainless steel
  • Max. no. of inserts4
  • Max. temperature300 °C
  • Max. voltage120 V
  • Min. temperature+5 °C
  • Nominal capacity20 l
  • Plug typeUS
  • Power supply120 V, 60 Hz
  • Rated capacity0.8 kW
  • Temperature stability±0,5 K (150 °C)
  • TemperatureRT
  • TemperatureRT+5 ... 300 °C
  • TypeED 23UL
  • Type of auxiliary energyMains connection
  • UNSPSC41104510
  • Weight27 kg
  • With timerYes
