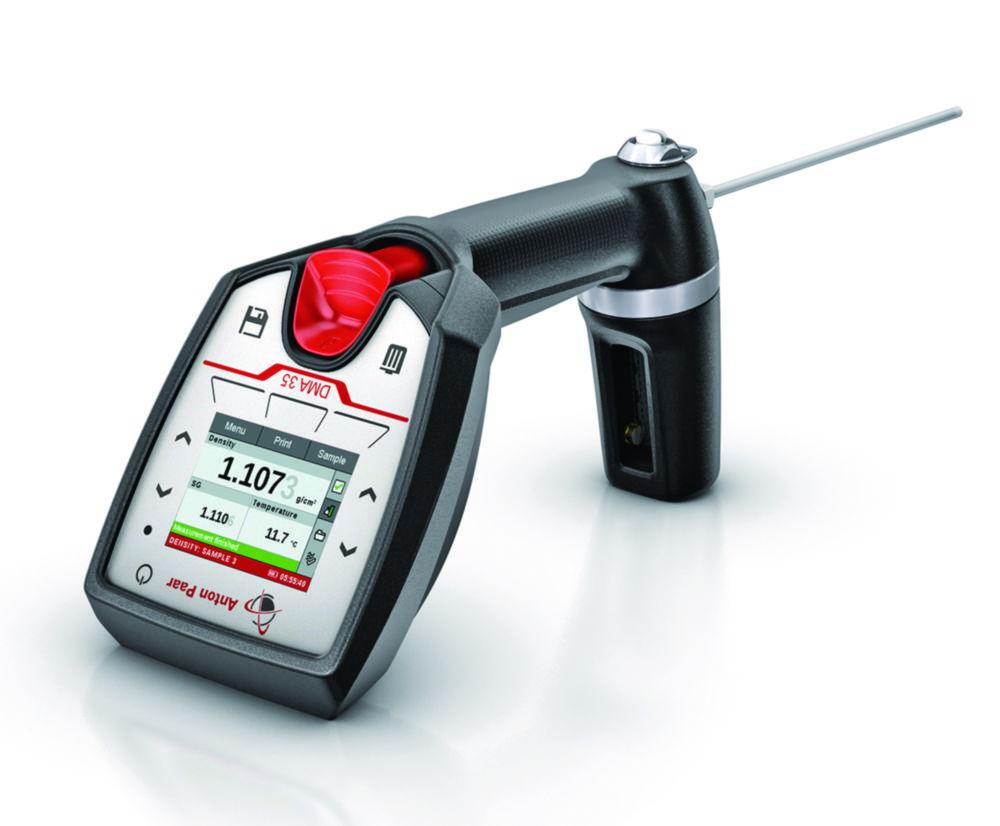

Anton Paar Portable Density Meter DMA 35 EX Petrol
Product overview
The Anton Paar DMA 35 EX Petrol Portable Density Meter is a high-precision handheld instrument engineered for density, relative density, and concentration measurements in hazardous zones. Certified under ATEX standards, it is tailored for use in fuel, petrochemical, and industrial environments. Featuring a borosilicate glass oscillator and viscosity correction, it offers traceable, one-handed operation with gesture control and a robust, field-ready design. On-site measurements enable fast decisions, even in highly viscous samples, with automatic recognition of results outside tolerance limits.
Key Features:
- Brand: Anton Paar
- Certification: ATEX certified for explosive environments (Petrol-specific applications)
- Measurement: Density, relative density, alcohol, sugar/extract, API, H2SO4, and 10 custom-programmable units
- Sensor: Borosilicate glass oscillator with exchangeable measuring cell (oscillator principle)
- Operation: One-handed gesture control; sample filling via manual pump or syringe
- Durability: Rugged construction with rubber protection for measuring cell
- Traceability: Full data control and measurement traceability
- Error Handling: Automatic recognition of results outside specified tolerance limits
- Warranty: 3-year manufacturer warranty
Scope of Supply:
- Density meter
- Filling tube
- Adapter for syringe filling
- Syringes
- Transportation case
- Rubber protection for measuring cell
- 3 x batteries
- Allen key
- Instructions/manual
Ideal for petrochemical and fuel industries, the Anton Paar DMA 35 EX Petrol delivers safe, reliable, and portable density testing in demanding conditions.
Product Specifications
- HS Code #90278930
- Accuracy±0.001 g/cm³
- Accuracy0.001 g/cm³
- Battery/rechargeable battery3 x 1.5 V, AA
- Depth245 mm
- Designation ANSIAA
- Dimensions (WxDxH)103 x 245 x 126 mm
- Height126 mm
- InterfacesBluetooth®, RFID
- IP codeIP 54
- Max. measured value3 g/cm³
- Max. temperature sample100 °C
- Max. voltage battery/ rechargeable battery1.5 V
- Max. volume sample2 ml
- Measured range0 ... 3 g/cm³
- Min. measured value0 g/cm³
- Min. temperature sample0 °C
- No. of batteries/ rechargeable batteries3
- Resolution0.0001 g/cm³
- StandardISO 15212-1, IP 559, ASTM D7777
- Temperature sample0 ... 100 °C
- TypeDMA 35 EX Petrol
- Type of auxiliary energyBattery
- UNSPSC41103320
- Volume sample2 ml
- Warranty3 years
- Weight660 g
- Width103 mm
Downloads
- Anton Paar DMA 35 Series Portable Density Meter BrochureDownload
