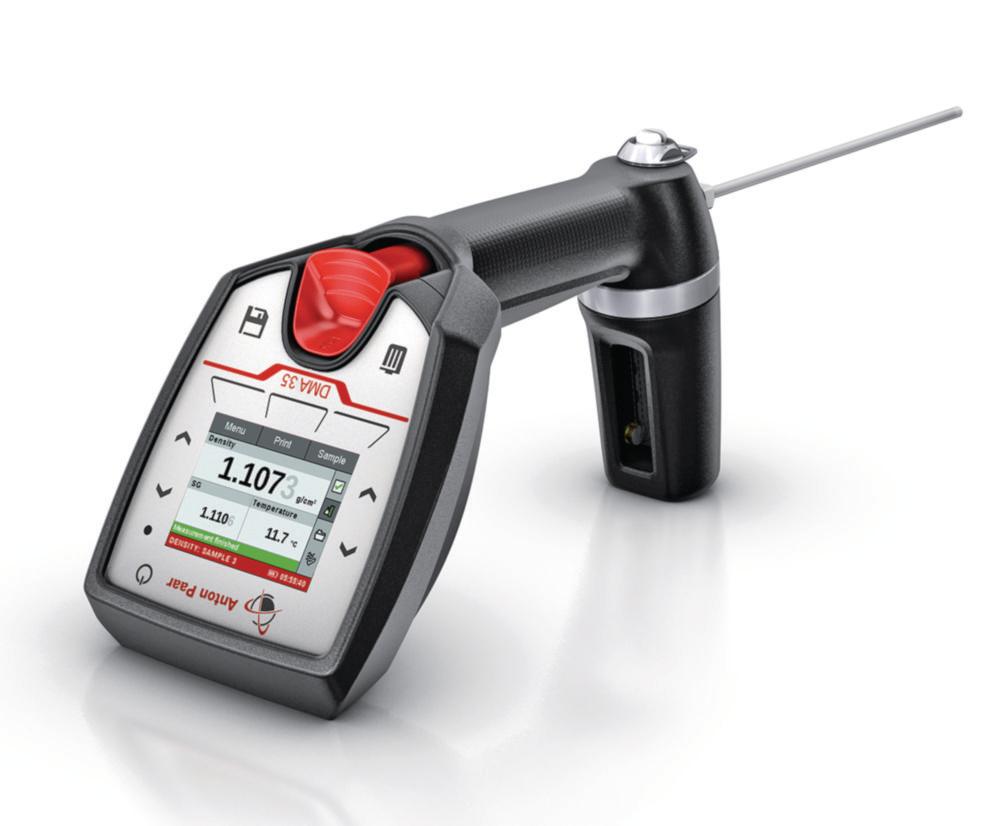

Anton Paar Portable Density Meter DMA 35 EX
Product overview
The Anton Paar DMA 35 EX Portable Density Meter is a rugged, ATEX-certified digital instrument designed for precise on-site measurement of density, relative density, and concentration, even in hazardous environments. Utilizing the oscillator principle with a borosilicate glass oscillator, this device ensures traceable data control and accurate results for highly viscous samples. Ideal for industrial, chemical, and petrochemical settings, it features gesture-controlled one-handed operation and a robust case with an exchangeable measuring cell.
Key Features:
- Brand: Anton Paar
- Certification: ATEX-approved for use in hazardous environments
- Measurement: Density, relative density, alcohol concentration, sugar/extraction concentration, API functions, H2SO4 concentration, and 10 programmable custom units
- Sensor: Borosilicate glass oscillator with exchangeable measuring cell
- Operation: One-handed gesture control with manual filling pump or syringe
- Data Handling: Complete traceability and tolerance limit recognition
- Durability: Robust casing with rubber protection, designed for field use
- Warranty: 3 years warranty
Scope of Supply:
- DMA 35 EX Density Meter
- Filling tube
- Adapter for syringe filling
- Syringes
- Transportation case
- Rubber protection for measuring cell
- 3 x batteries
- Allen key
- Instructions/user manual
The Anton Paar DMA 35 EX is the ideal solution for portable, fast, and accurate density measurements—offering safety, precision, and convenience for professionals in demanding environments.
Product Specifications
- HS Code #90278930
- Accuracy±0.001 g/cm³
- Accuracy0.001 g/cm³
- Battery/rechargeable battery3 x 1.5 V, AA
- Depth245 mm
- Designation ANSIAA
- Dimensions (WxDxH)103 x 245 x 126 mm
- Height126 mm
- InterfacesBluetooth®, RFID
- IP codeIP 54
- Max. measured value3 g/cm³
- Max. temperature sample100 °C
- Max. voltage battery/ rechargeable battery1.5 V
- Max. volume sample2 ml
- Measured range0 ... 3 g/cm³
- Min. measured value0 g/cm³
- Min. temperature sample0 °C
- No. of batteries/ rechargeable batteries3
- Resolution0.0001 g/cm³
- StandardISO 15212-1
- Temperature sample0 ... 100 °C
- TypeDMA 35 EX
- Type of auxiliary energyBattery
- UNSPSC41103320
- Volume sample2 ml
- Warranty3 years
- Weight660 g
- Width103 mm
Downloads
- Anton Paar DMA 35 Series Portable Density Meter BrochureDownload
Products related to this item (3)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
183057 | 6.313 805 | Anton Paar Portable Density Meter DMA 35 EX Petrol | DMA 35 EX Petrol | Battery | 21٬889٫60 | |||
172244 | 6.313 803 | Anton Paar DMA 35 Standard Portable Density Meter, Digital Handheld Device | DMA 35 Standard | Battery | 18٬320٫74 | |||
226130 | 4.691 913 | Density meter DMA 35 AMPERE | DMA 35 Ampere | Battery | 26٬310٫98 |
